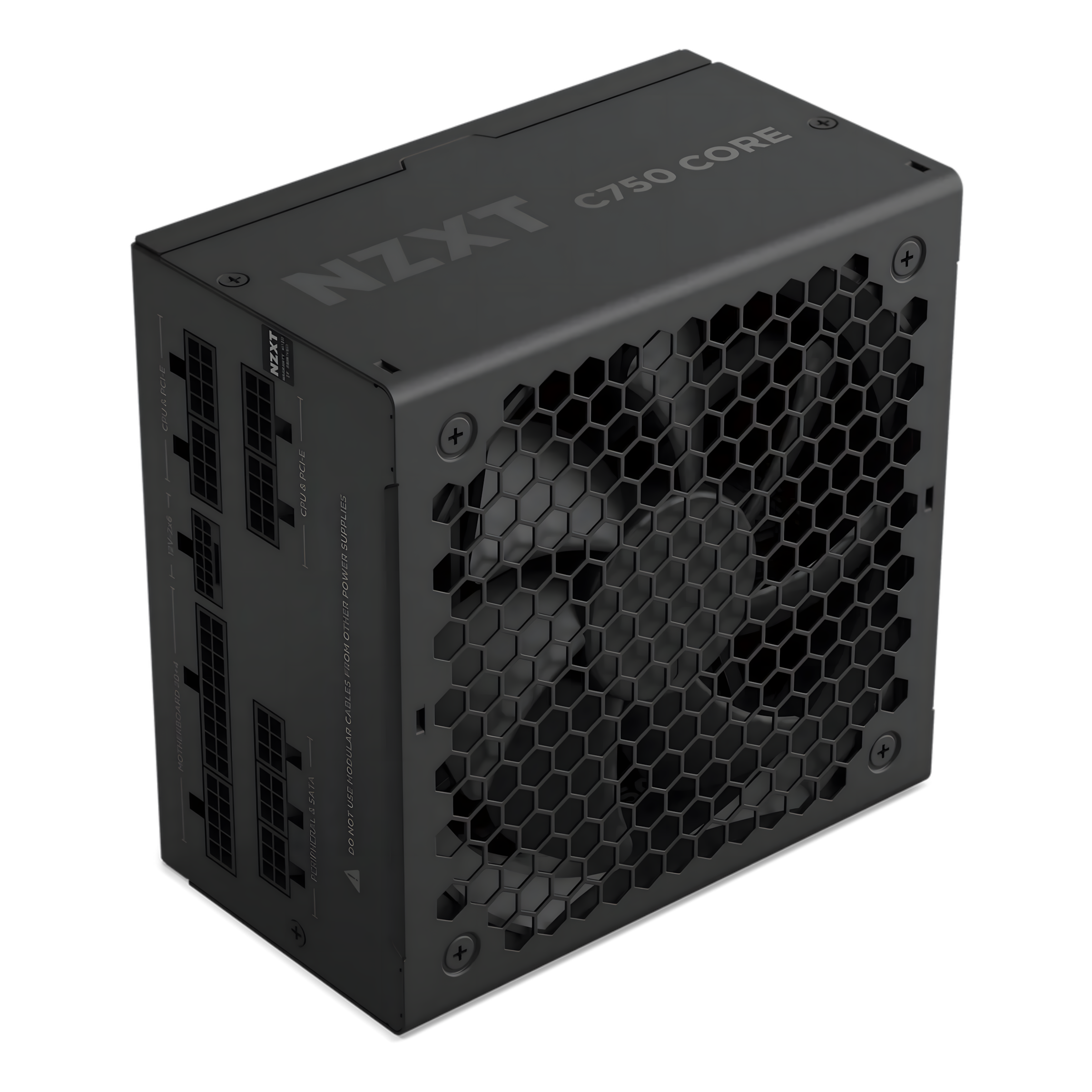

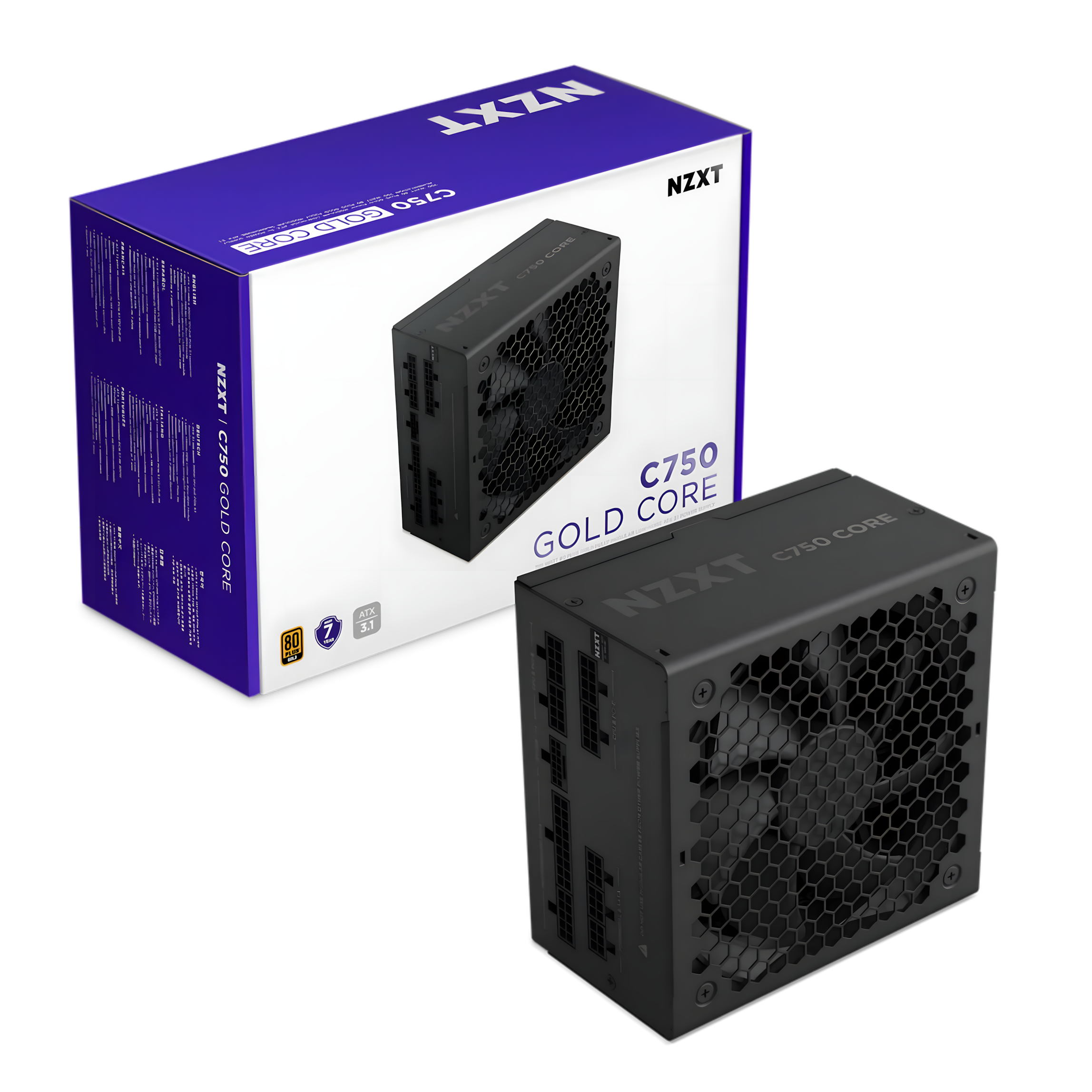

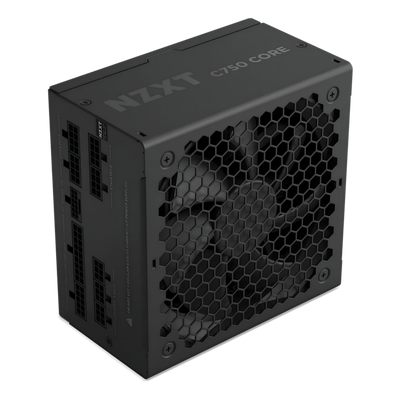

NZXT C-Core series Fully Modular 80+ Gold

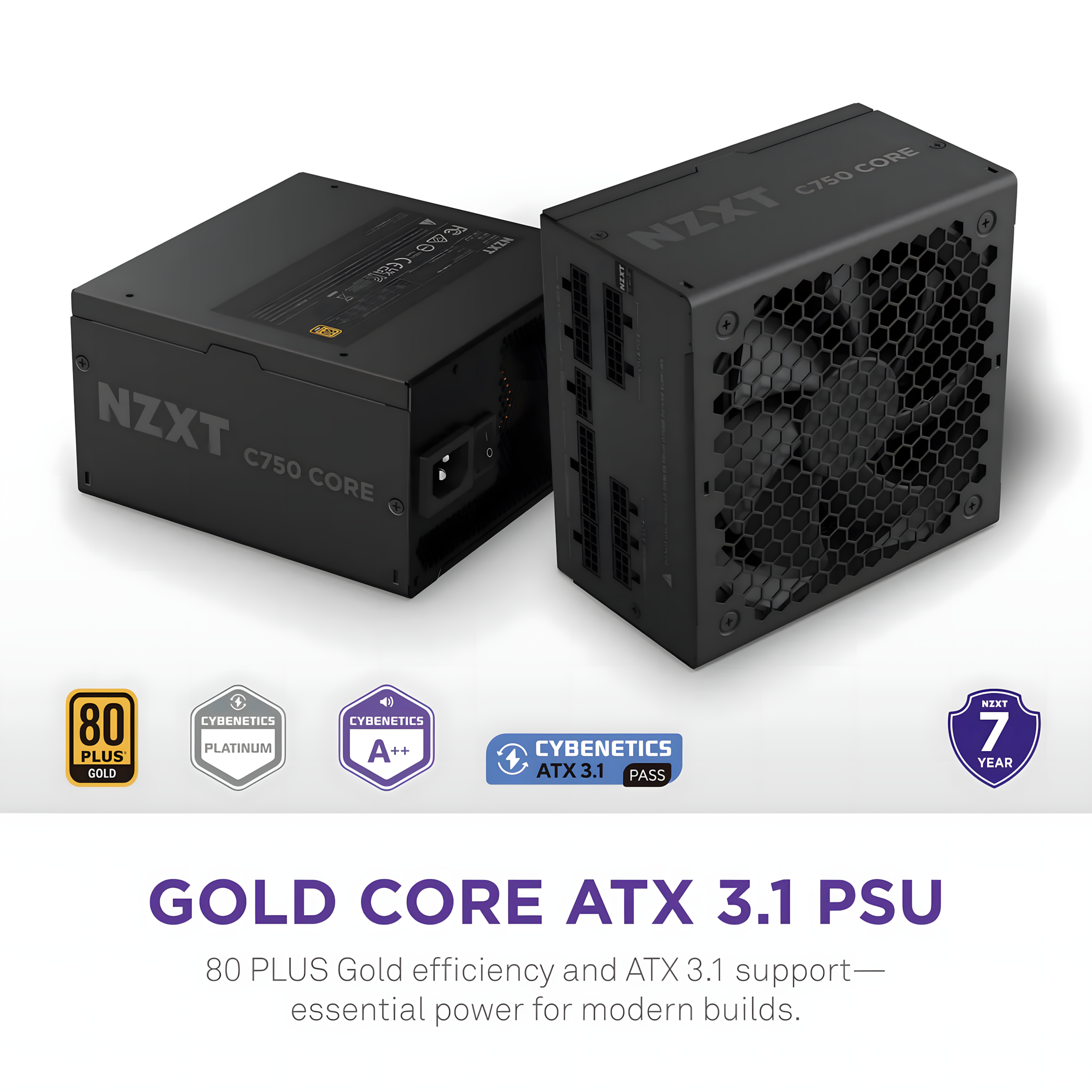

The NZXT Gold Core is an ATX 3.1, fully modular PSU with 80 PLUS Gold and Cybenetics Platinum efficiency, A+/A++ noise rating, and a 12V-2x6 PCIe 5.1 connector. Built for modern GPUs, it delivers clean, quiet power with easy cable management for performance PCs.

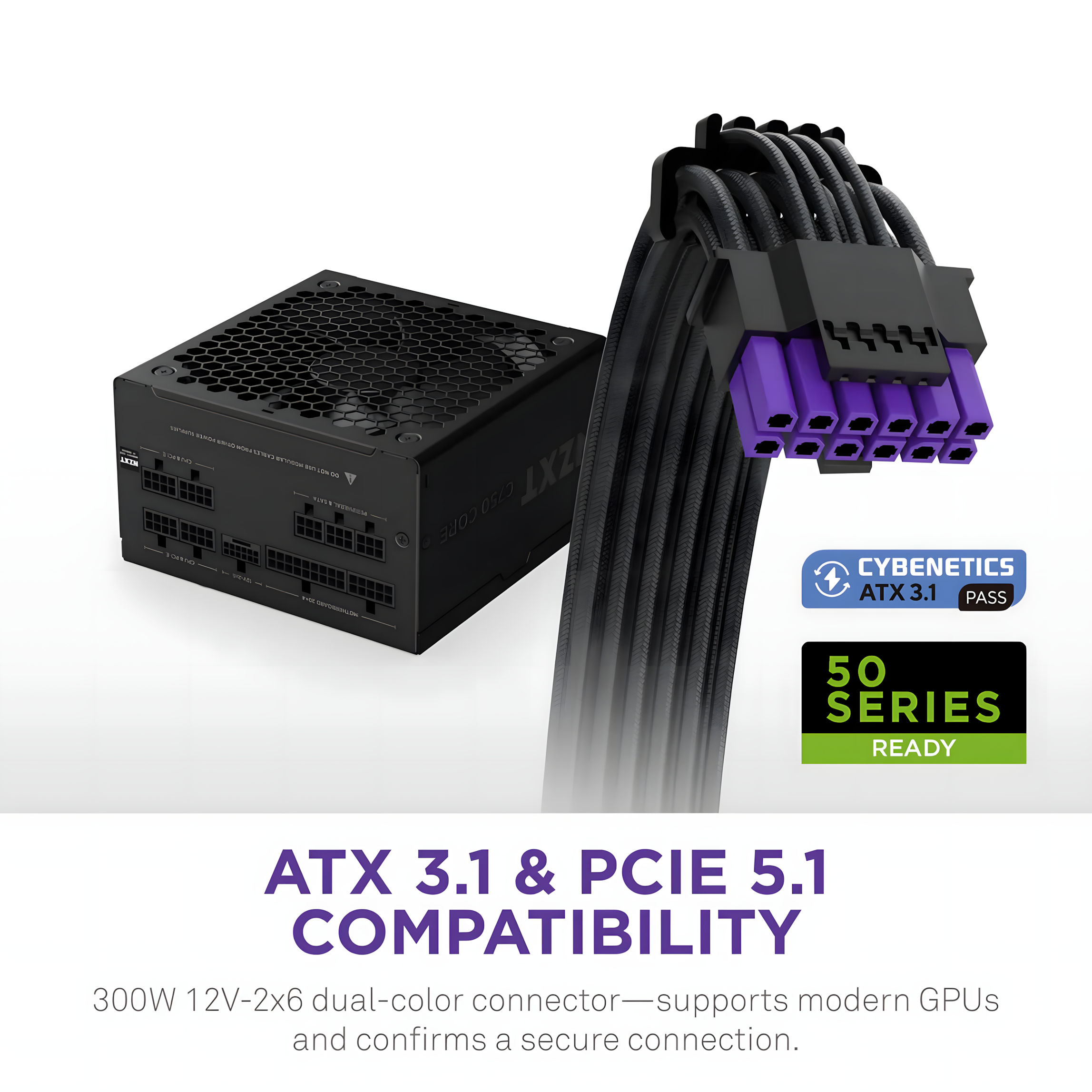

- ATX 3.1 Certified, PCIE 5.1 Ready
- 80 PLUS Gold & Cybenetics Platinum Efficiency
- Whisper-Quiet Operation

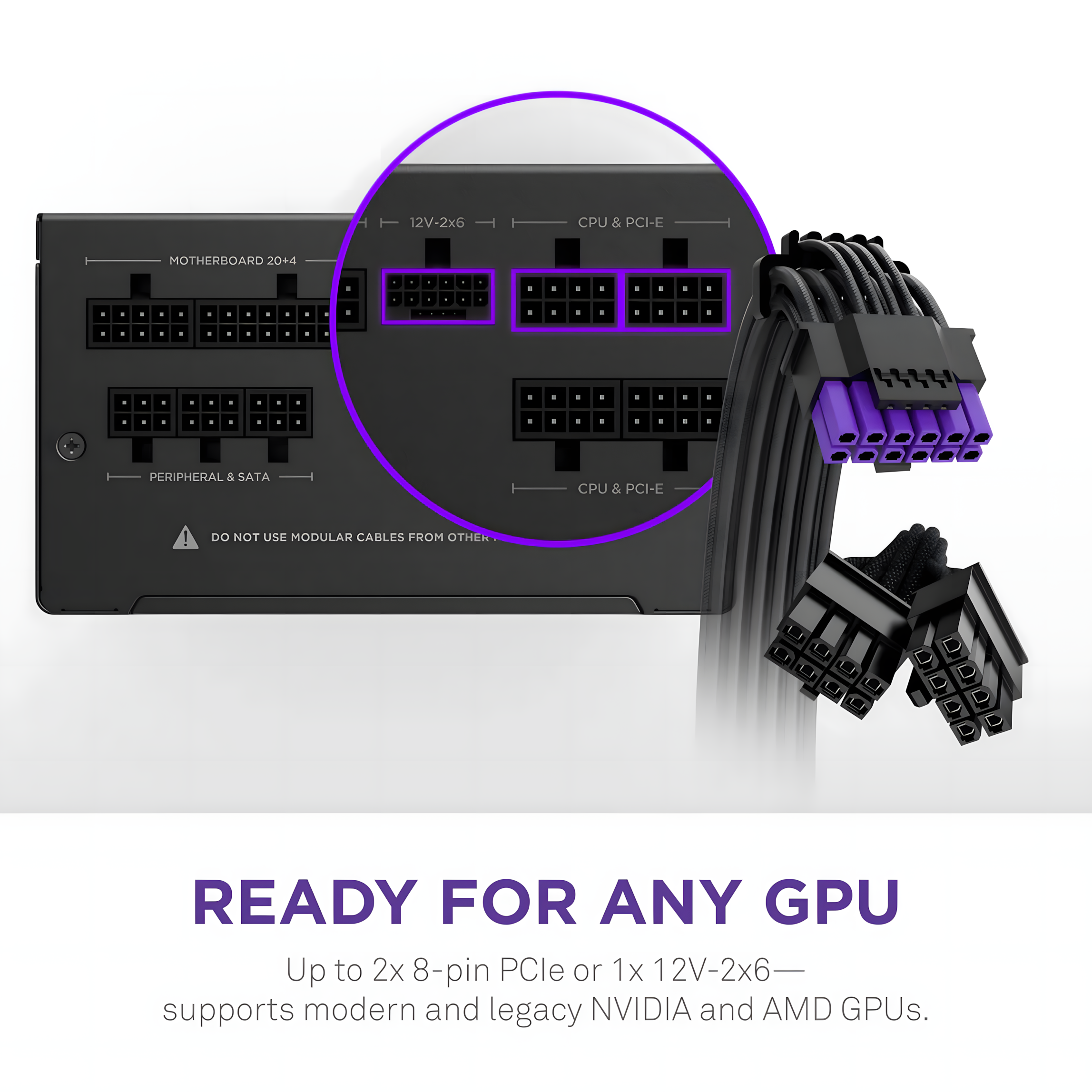

- Ready for AMD & NVIDIA GPUs

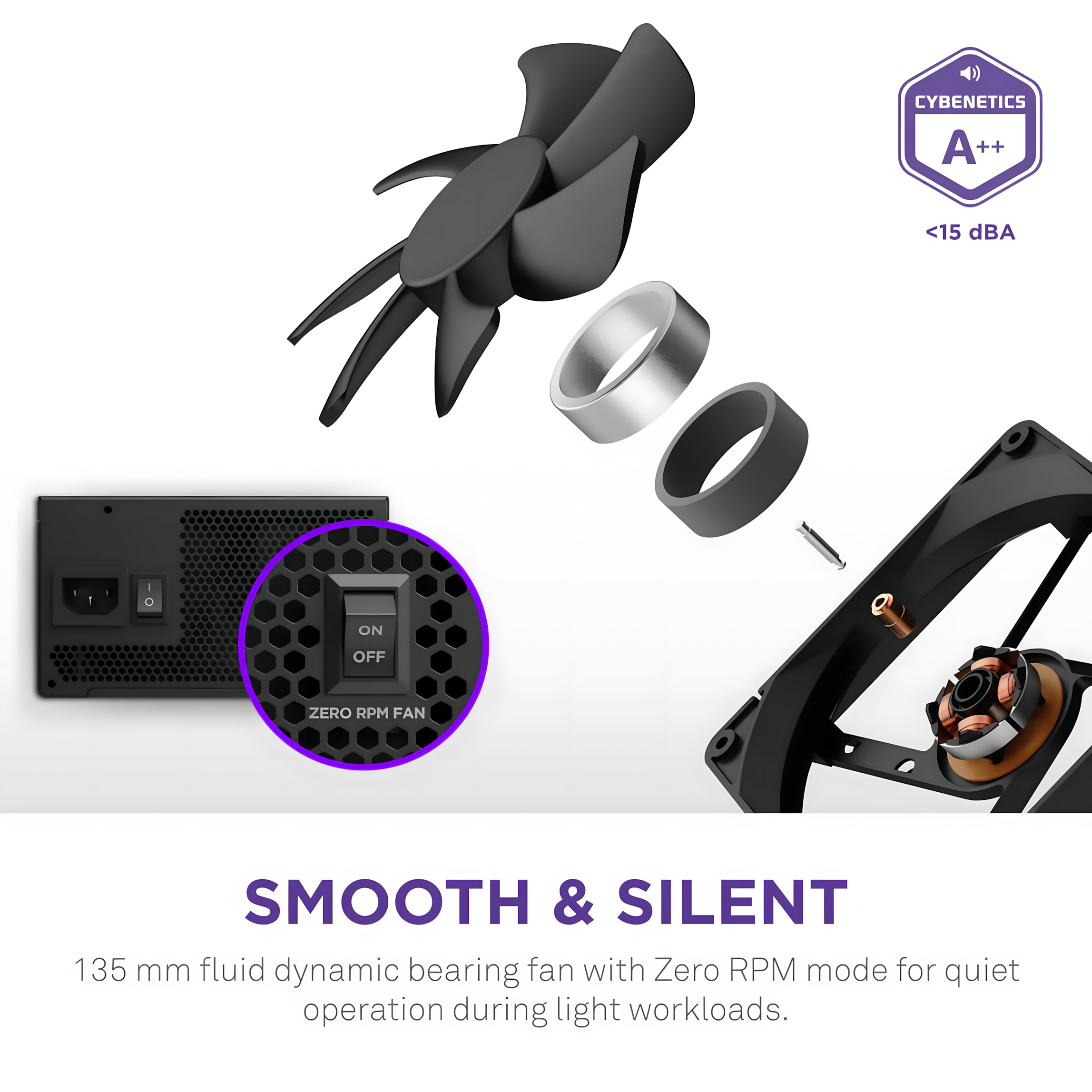

- FDB Fan with Zero RPM Mode

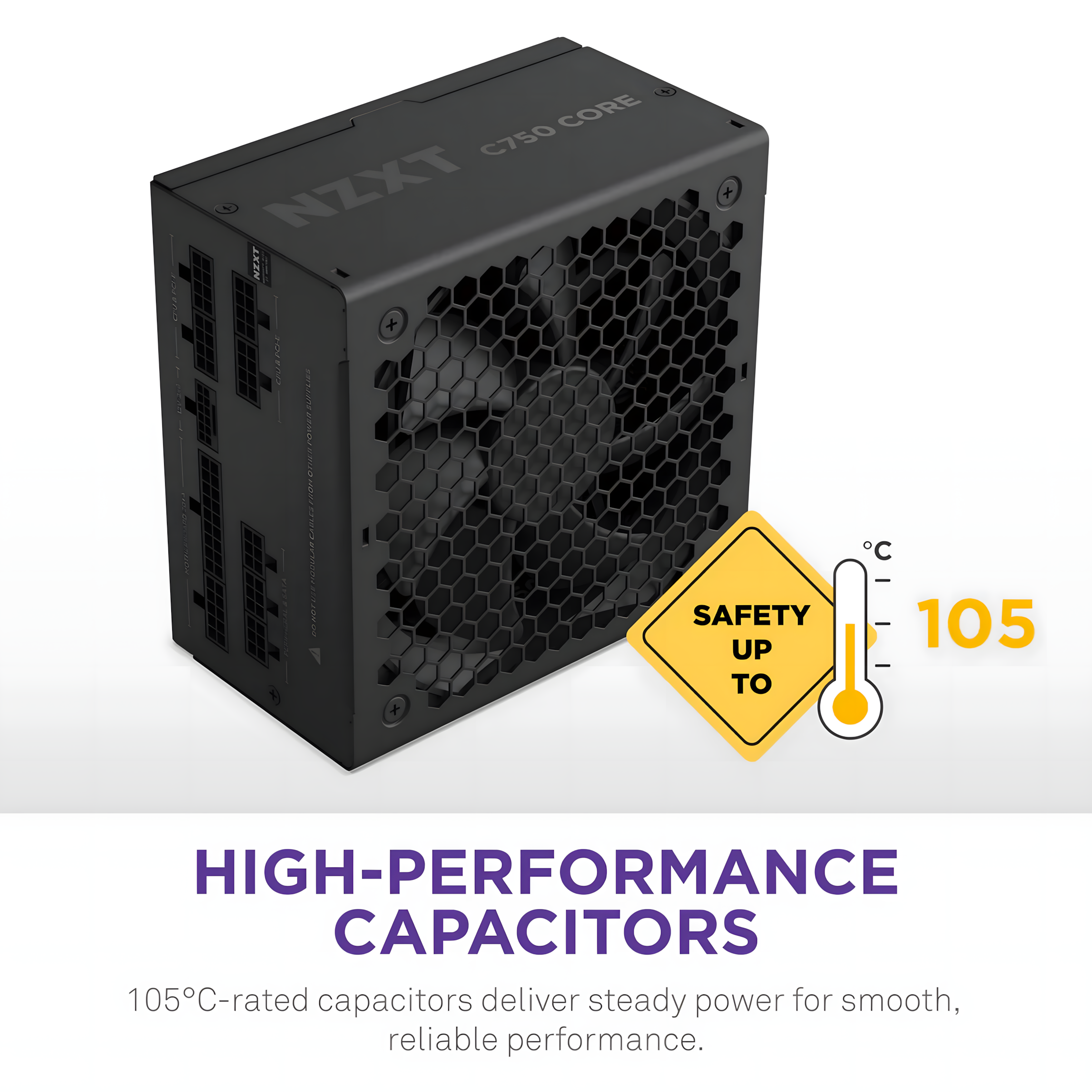

- Premium 105°C-Rated Capacitors
- Fully Modular with Embossed Cables
Product Highlights
Rating
Couldn't load pickup availability
Pickup available at 12 Residence Warehouse
Usually ready in 1 hourPairs well with
NZXT C-Core series Fully Modular 80+ Gold
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Technical Specifications

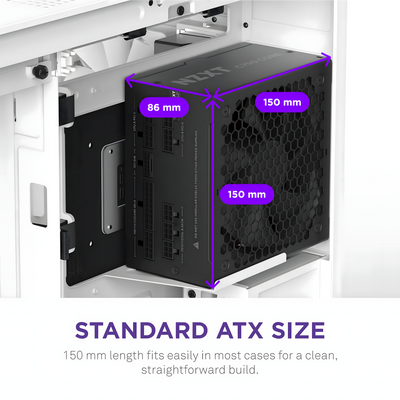

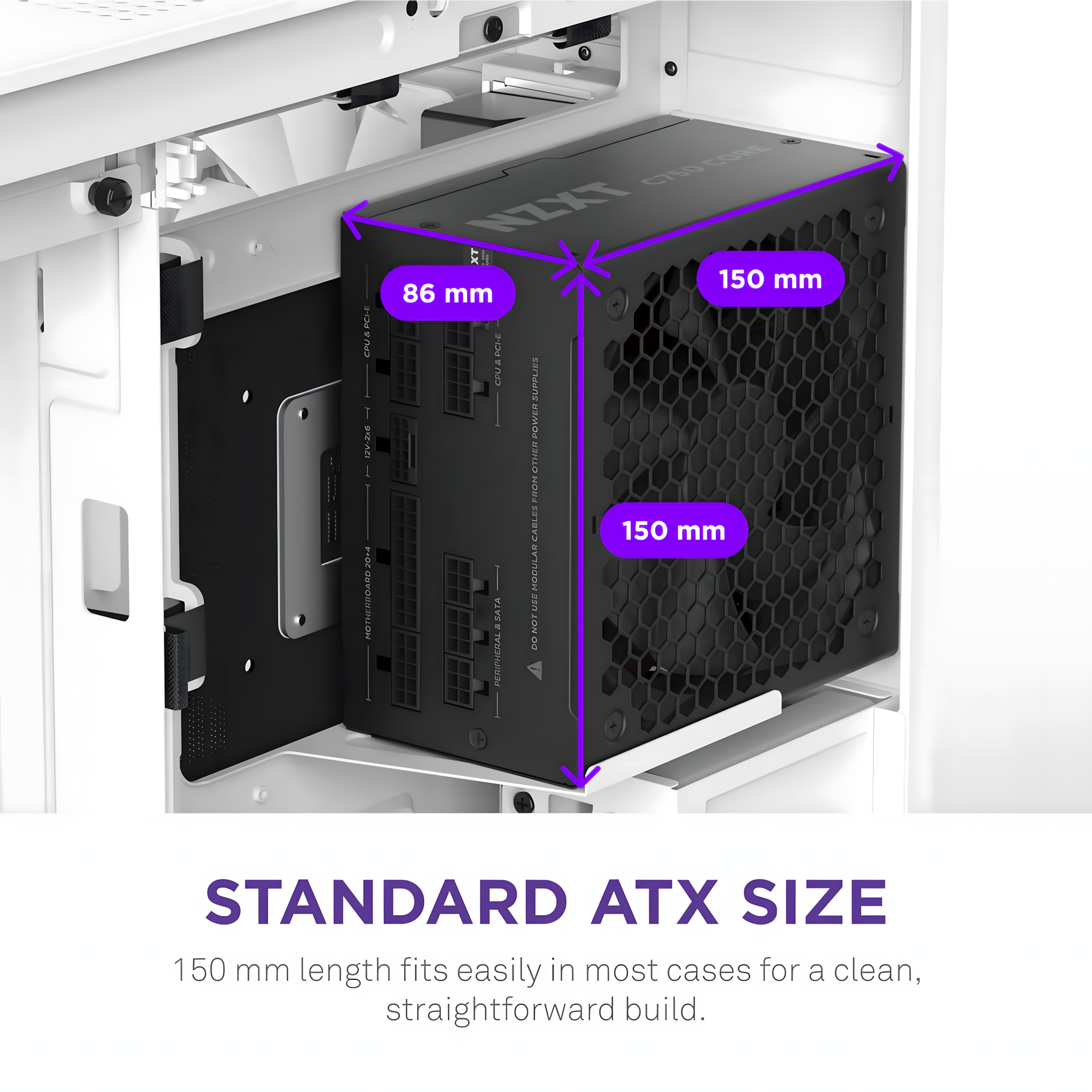

Dimensions
- Width: 150 mm
- Height: 86 mm
- Depth: 150 mm
General
- Wattage: 750 W
- Form Factor: ATX
- ATX Version: 3.1
- 80 PLUS Rating: Gold
- Cybenetics Efficiency: Platinum
- Cybenetics Noise: A++
- Modular: Fully modular
- Capacitors: 105°C performance capacitors
- Cable Type: Individually embossed with cable comb
- Zero RPM Fan Mode: Yes

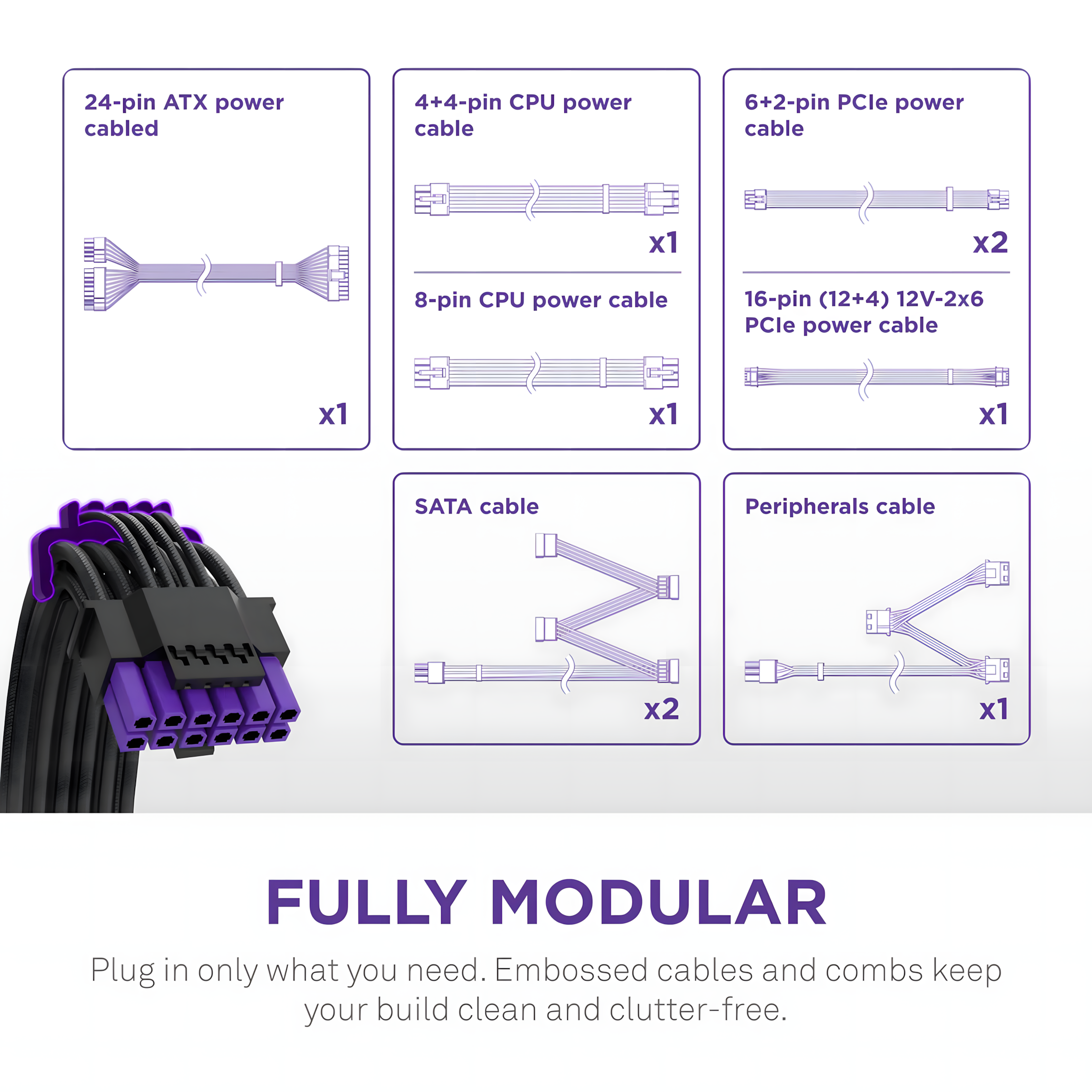

Cable Length & Connector Quantity
- 24-pin ATX Power Cable: 600 mm (1)
- 4+4-pin CPU Power Cable: 700 mm (1)
- 8-pin CPU Power Cable: 700 mm (1)
- 6+2-pin PCIe Power Cable: 650 mm (2)
- 16-pin (12+4) 12V-2x6 PCIe Power Cable: 650 mm (1) (300W)
- SATA Cables: 500 + 100 mm (8)
- Peripherals Cable: 500 + 100 mm (3)
AC Input Rating
- 100 – 240 Vac: 10 – 5 A, 50 – 60 Hz
- 200 – 240 Vac (South Korea): 5 A, 50 – 60 Hz
DC Output Rating
- +3.3 V and +5 V: 20 A (120 W)
- +12 V: 62.5 A (750 W)
- 5VSB: 3 A (15 W)
- Total: 750 W
Energy Efficiency
- 80 PLUS Rating: Gold
- 10% Load: 87.9% @ 115 V
- 20% Load: 91.63% @ 115 V
- 50% Load: 92.11% @ 115 V
- 100% Load: 89.53% @ 115 V
Fan Specs
- Size: 135 mm
- Type: PWM
- Speed: 2,300 ± 10% RPM
- Airflow: 103.36 CFM
- Noise Level:40.5 dBA
- Bearing: Fluid dynamic bearing
Operation
- MTBF: 100,000 hours
- Temperature:0 – 50°C (Continuous Full Load)
