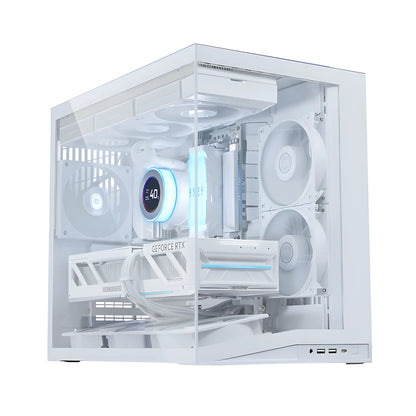

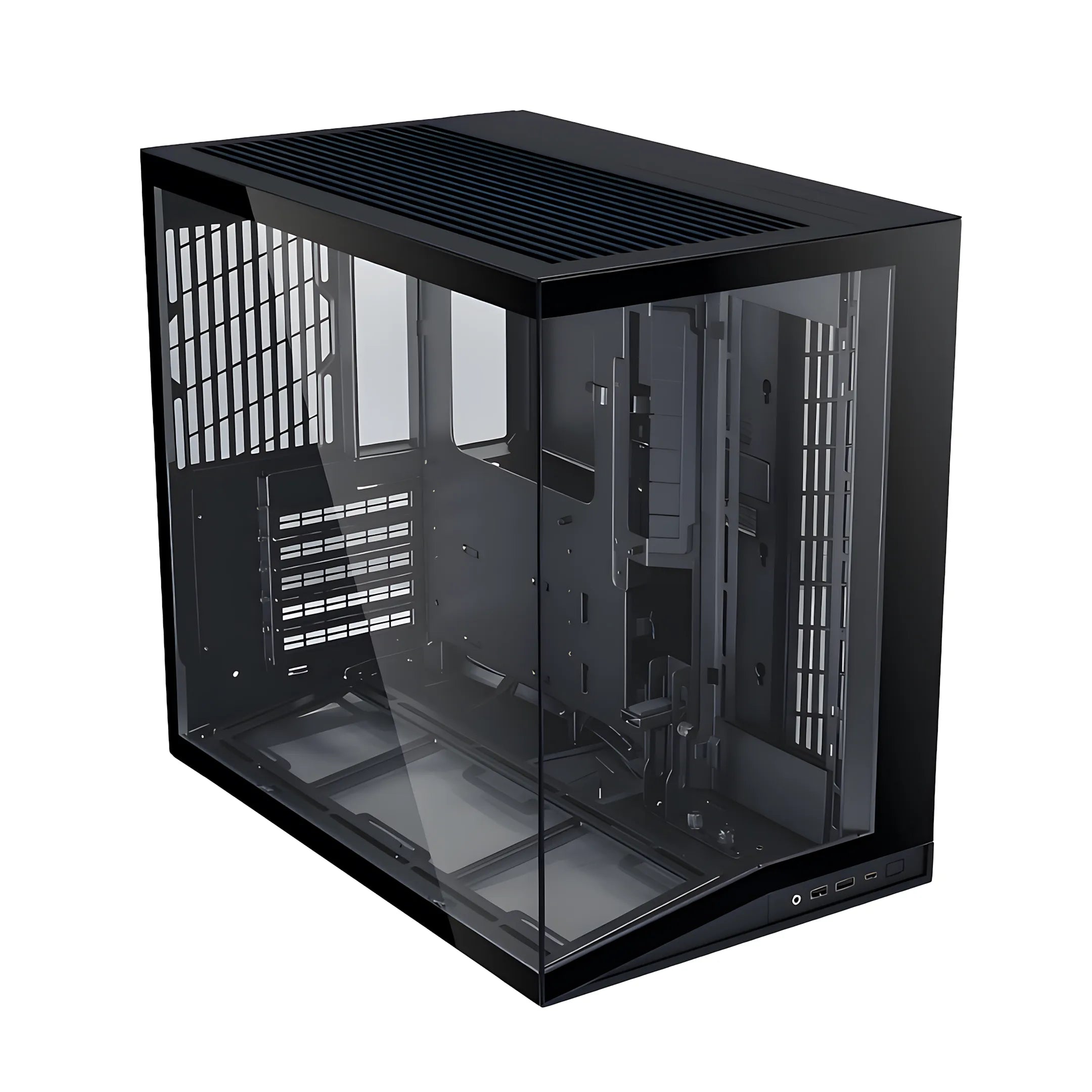

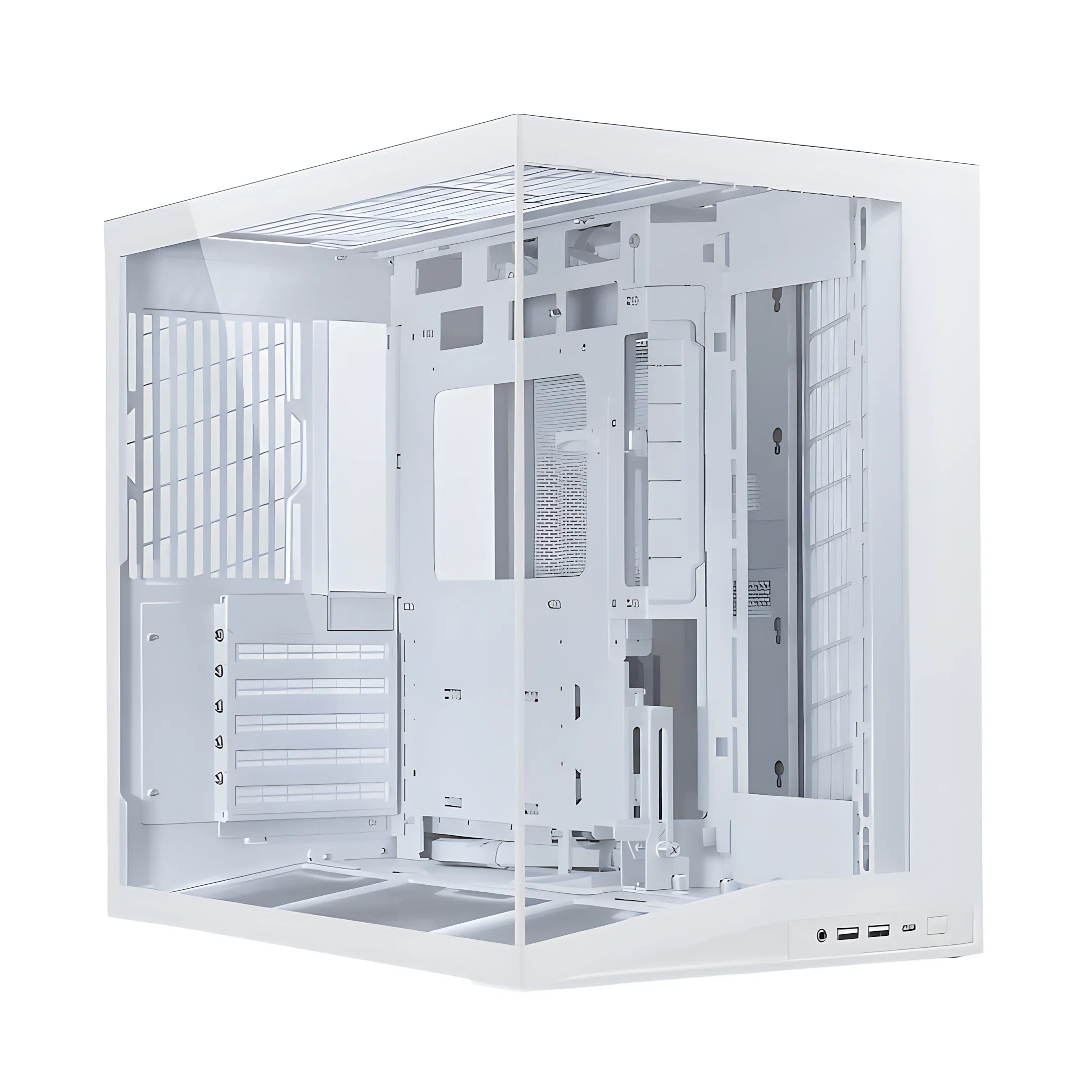

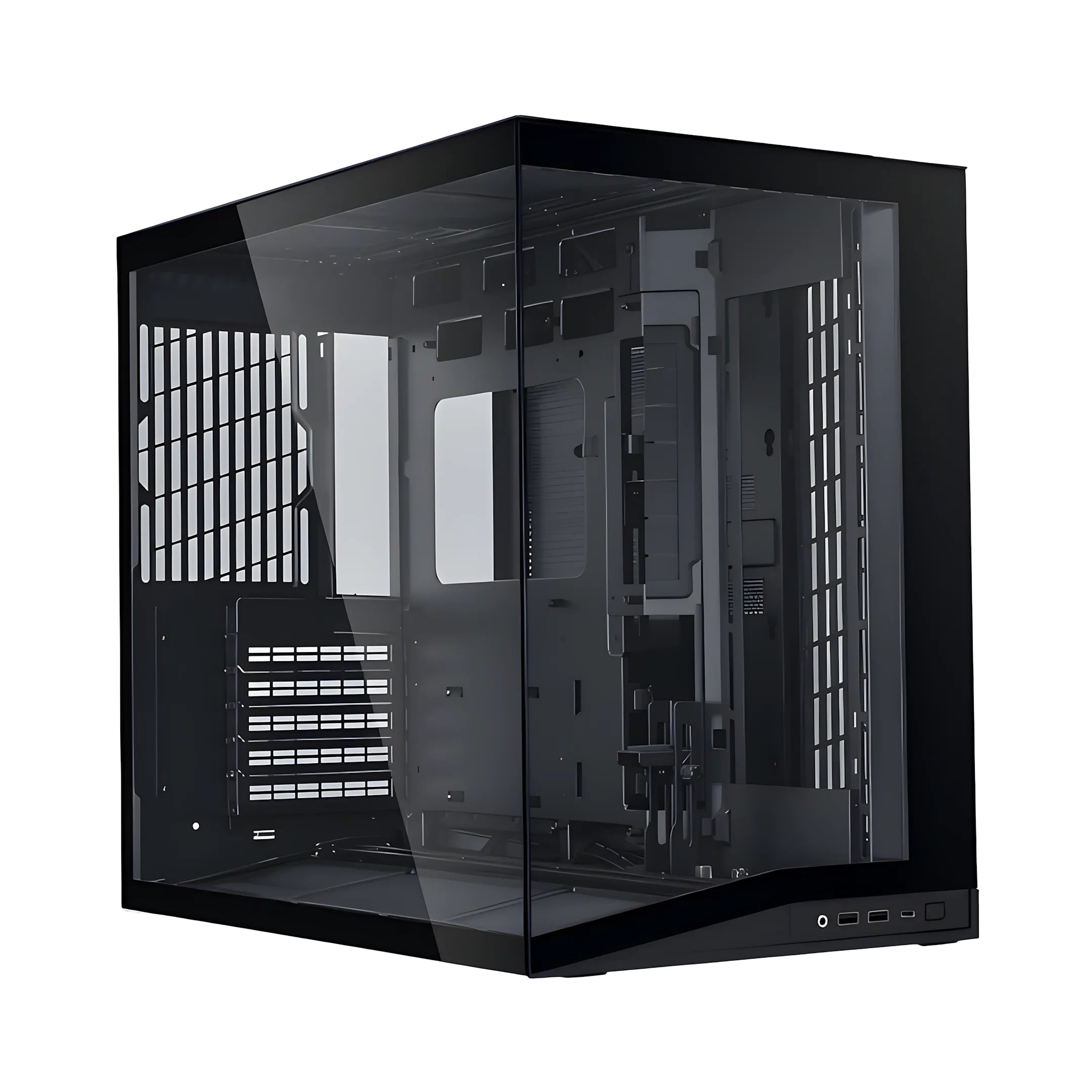

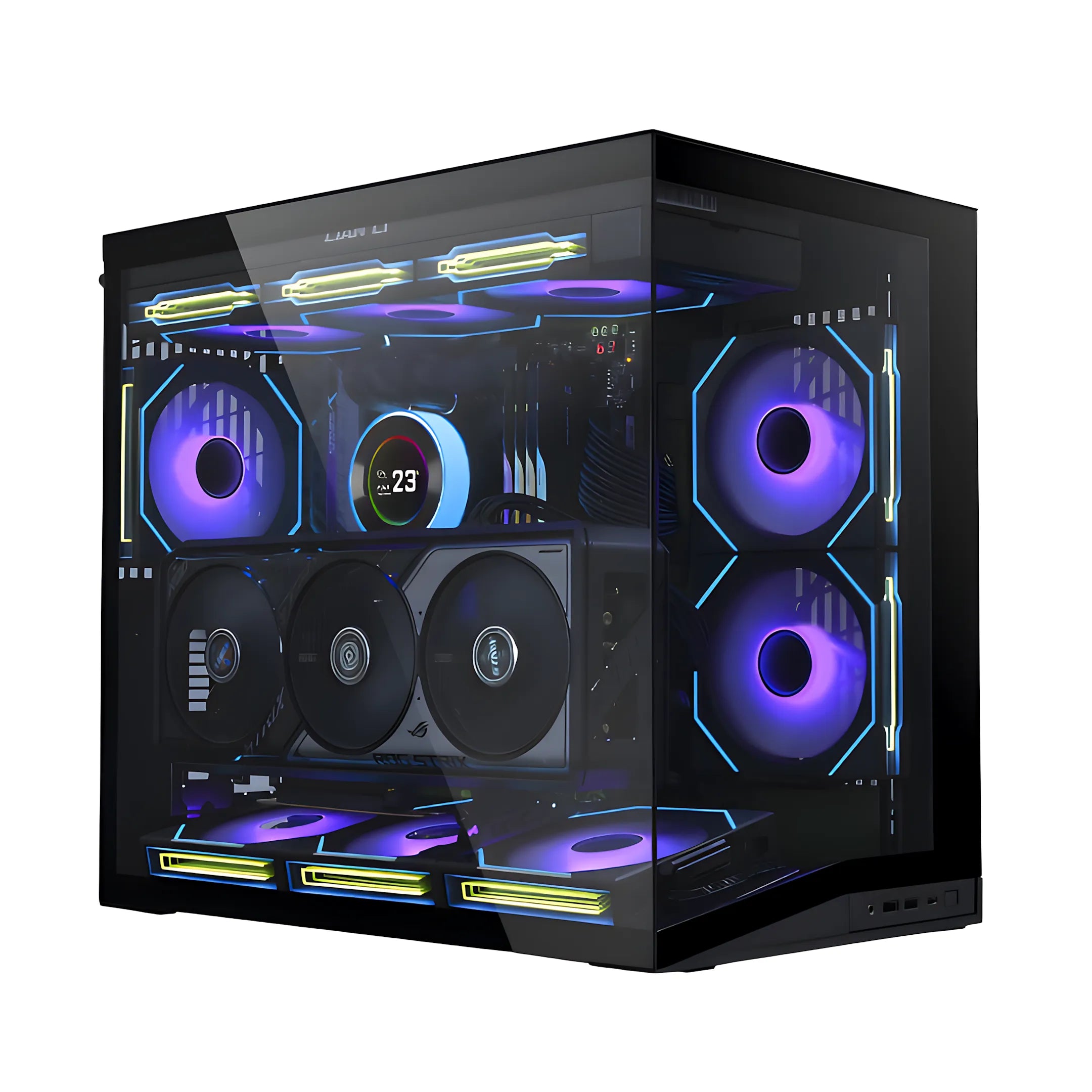

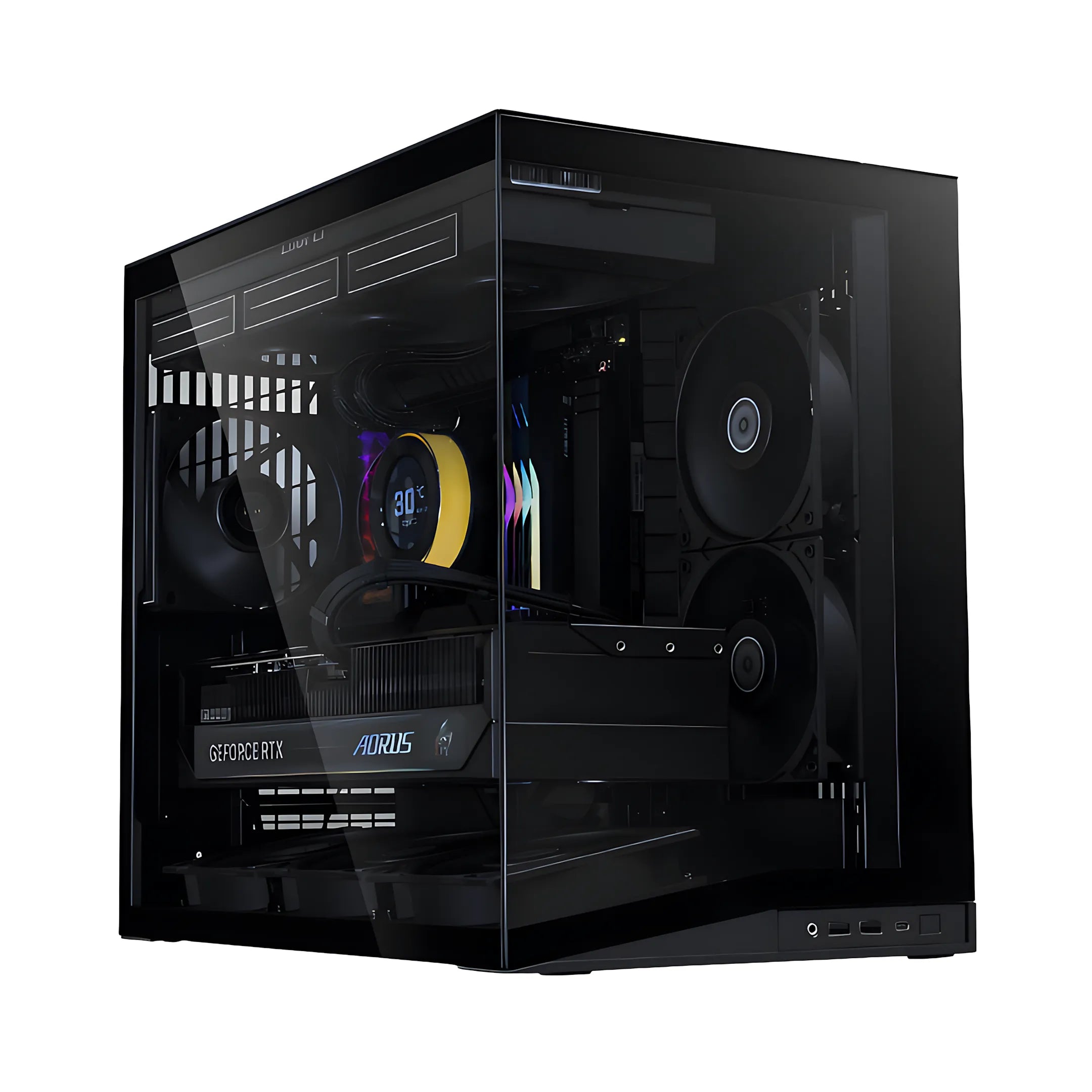

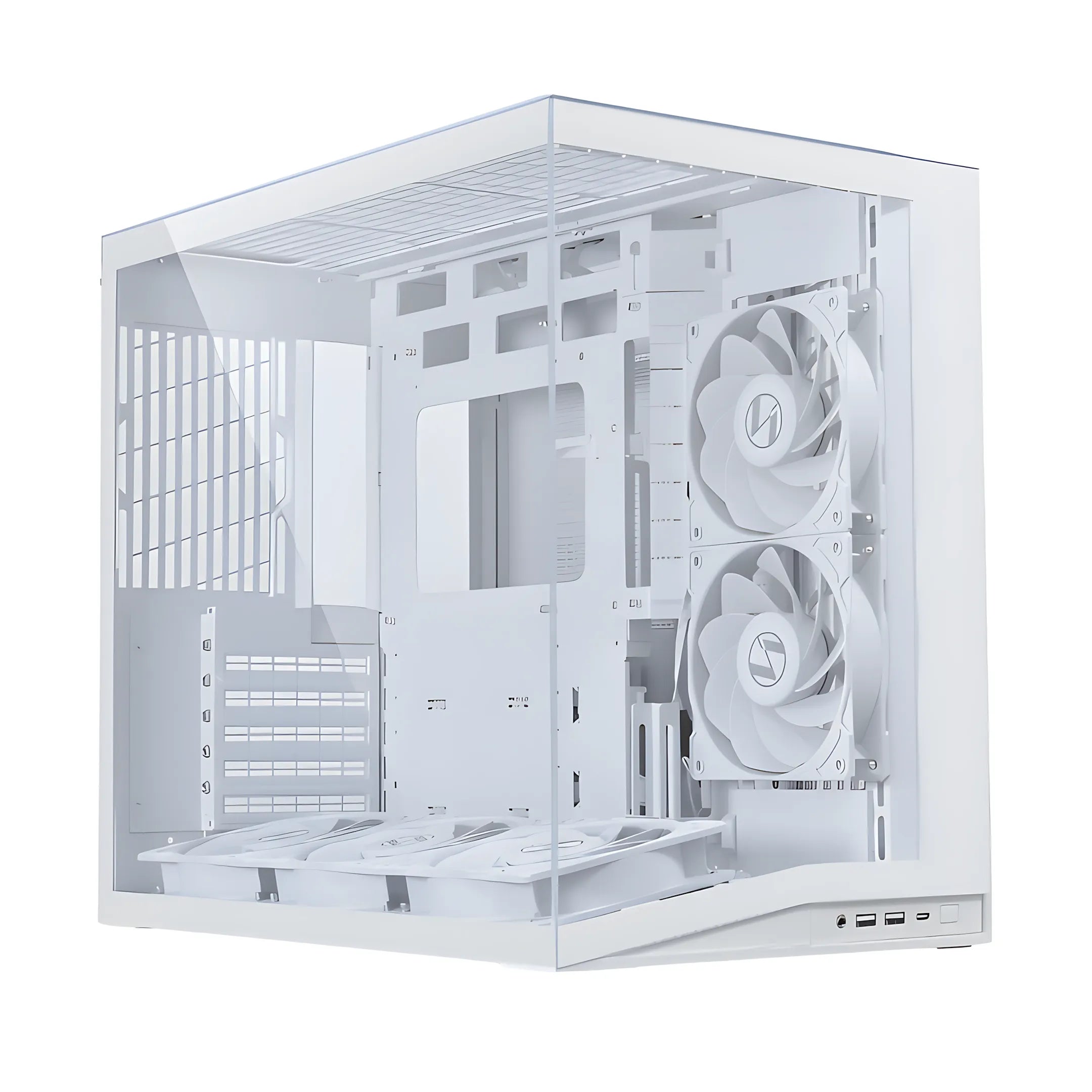

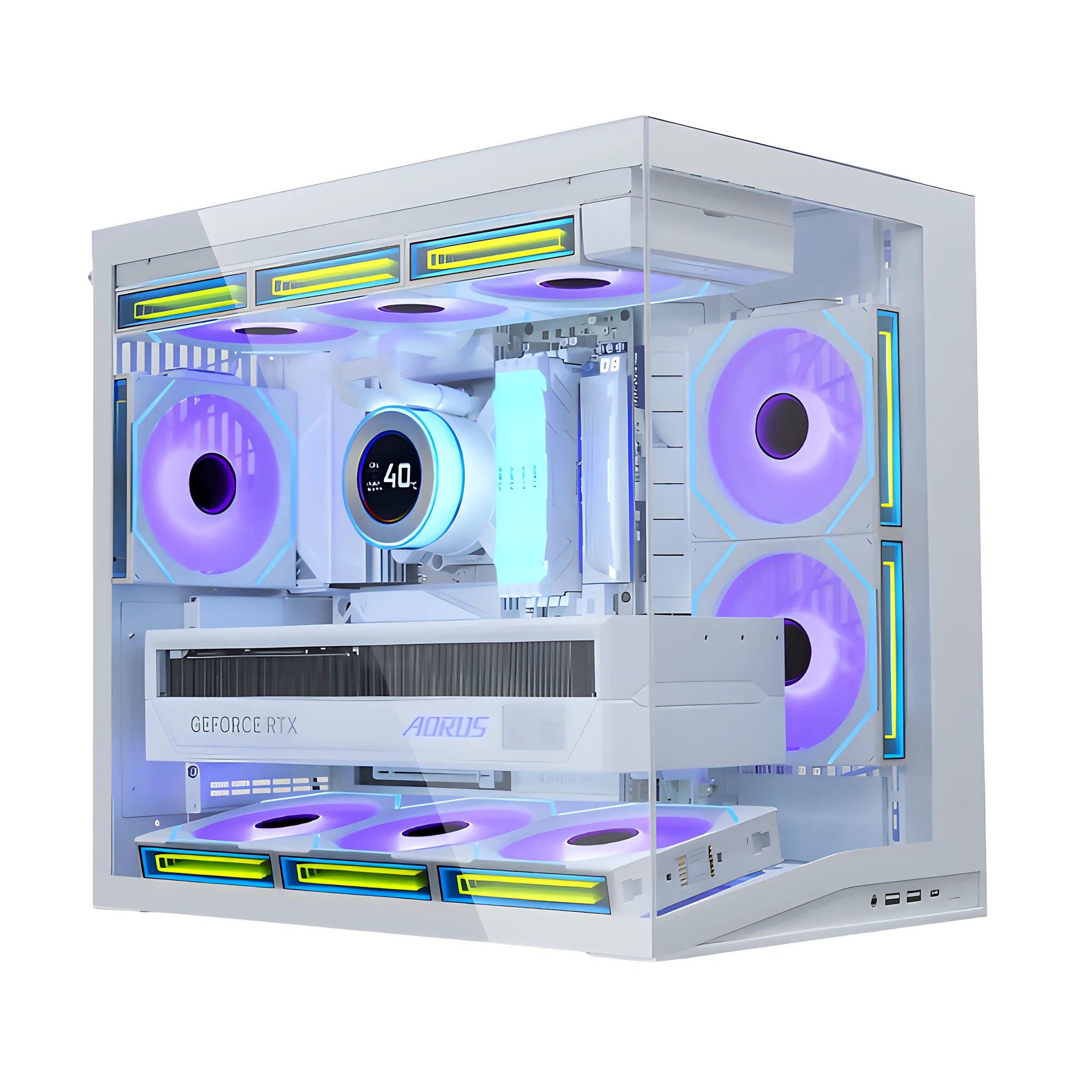

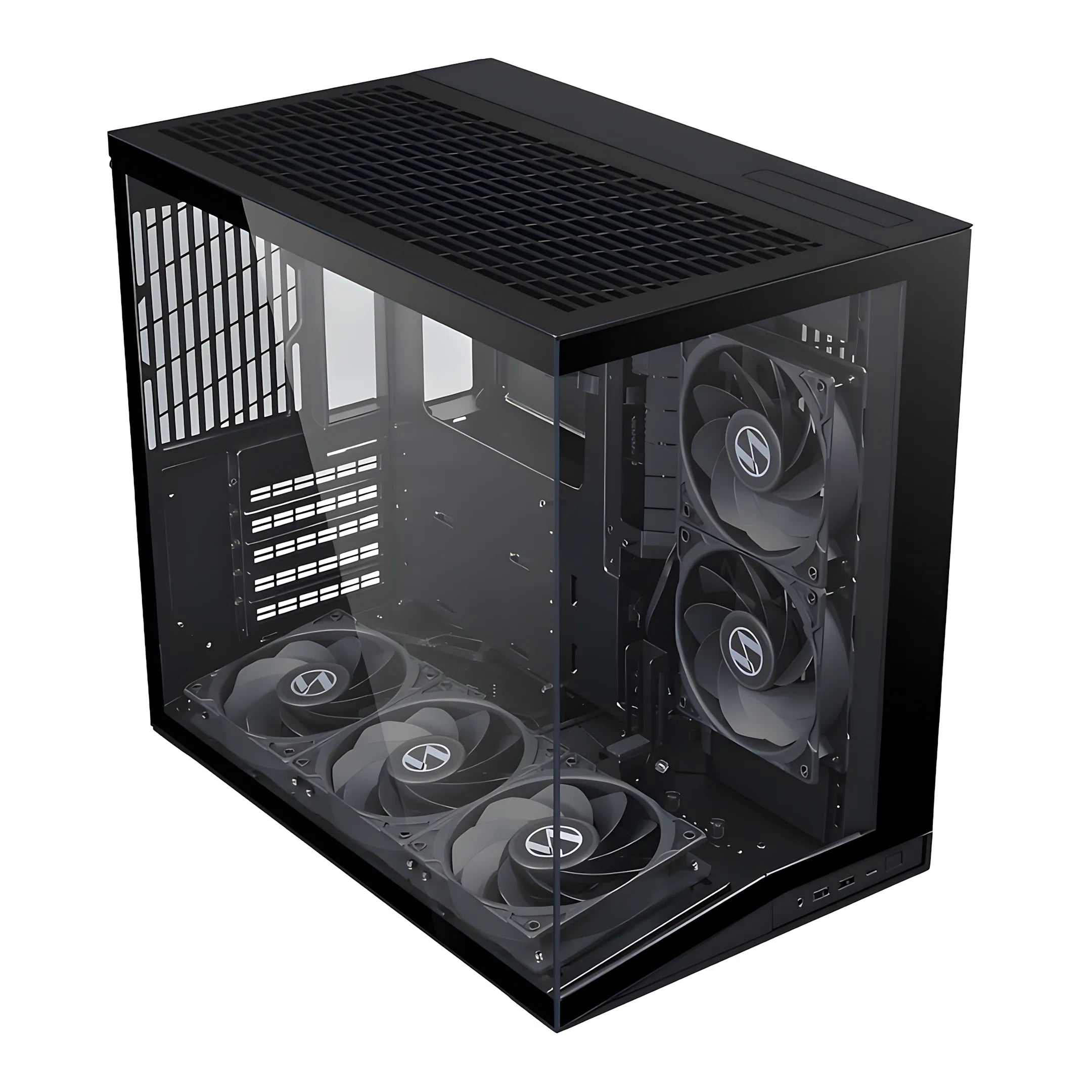

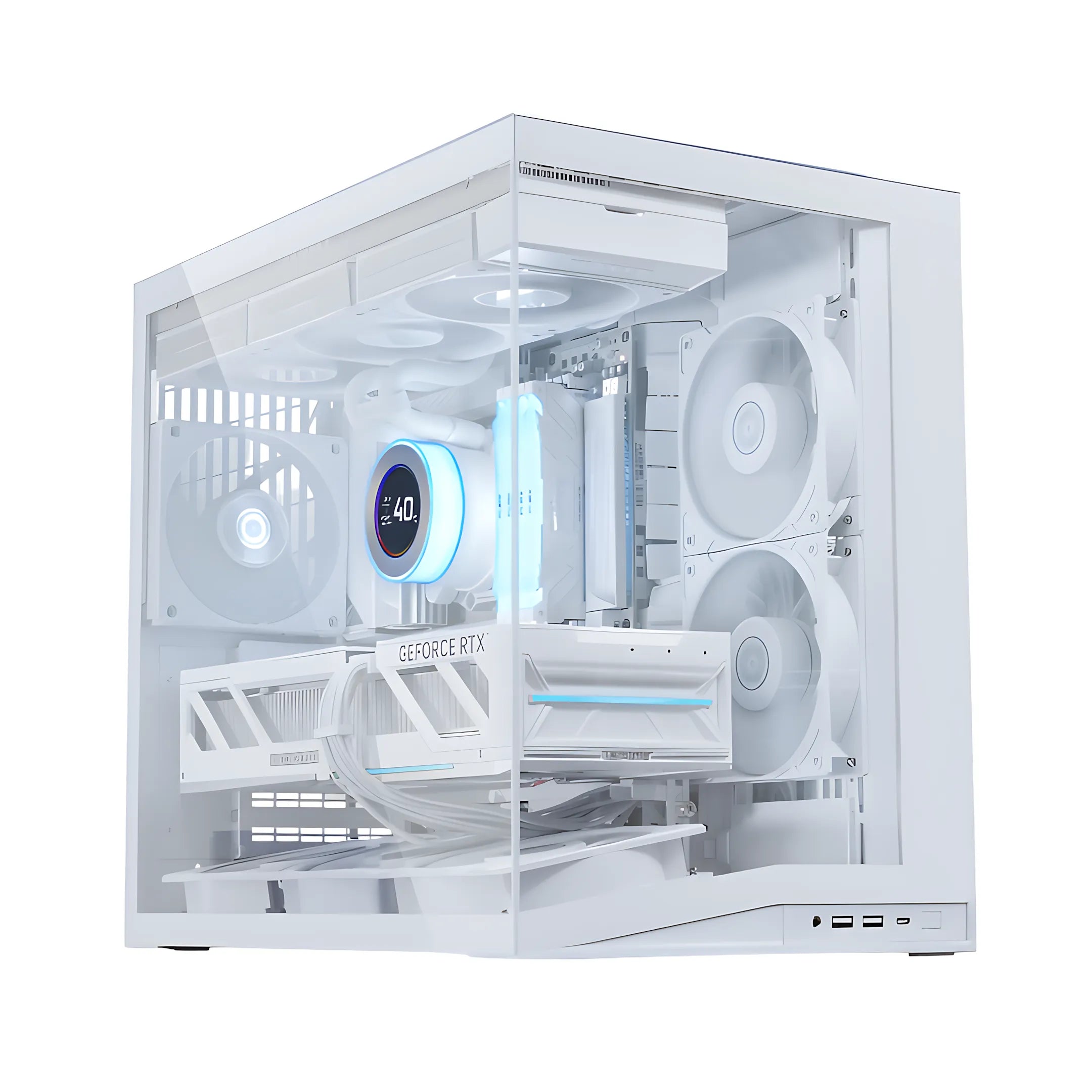

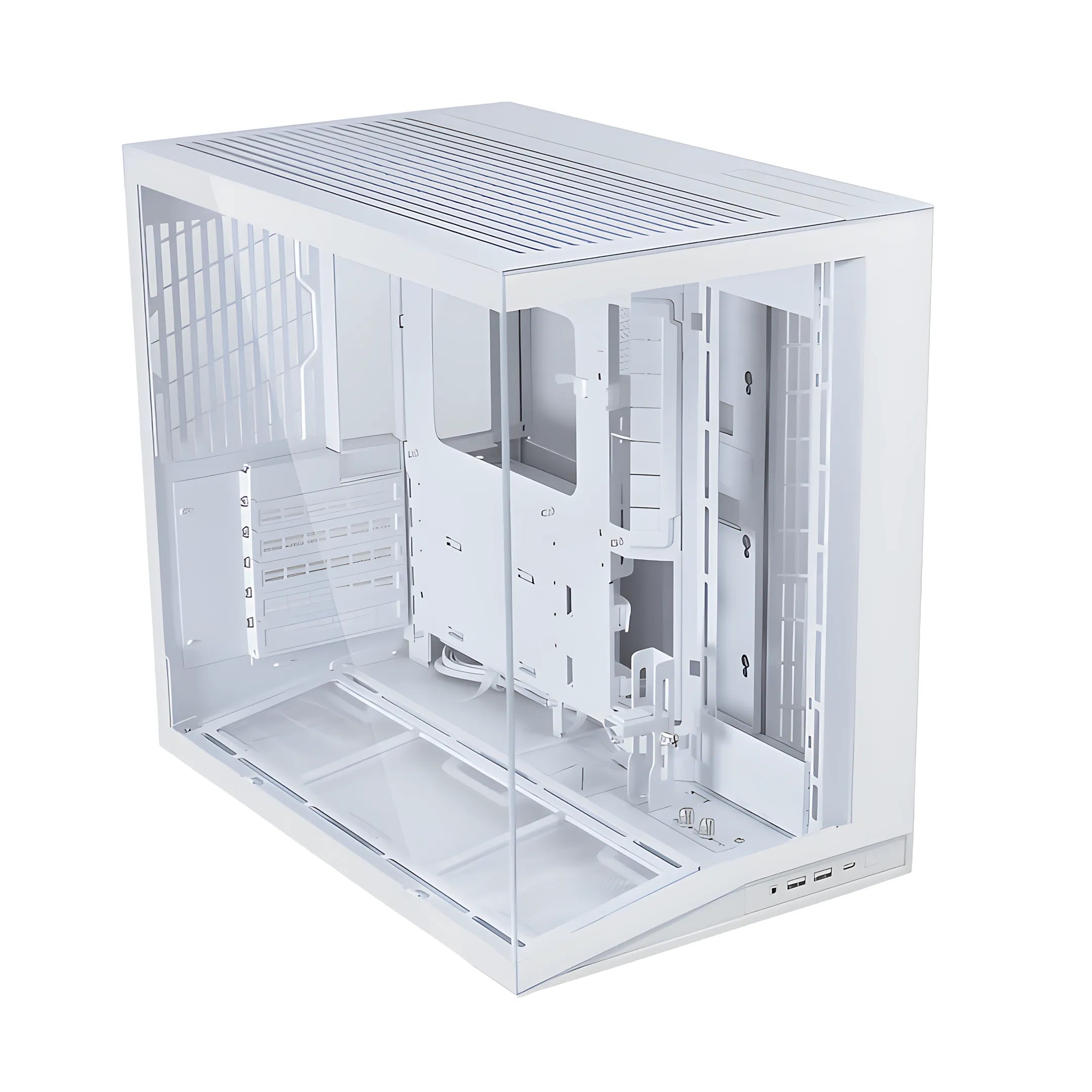

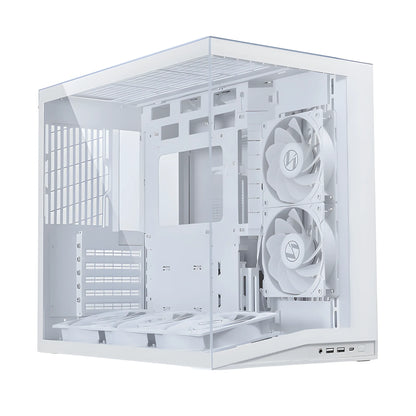

Lian Li O11 Dynamic Mini V2
A compact chassis refined for serious performance, offering smart cooling, modular flexibility, and clean aesthetics in one sleek build.
Product Highlights
Fans Included
Form Factor
Couldn't load pickup availability
Pickup available at 12 Residence Warehouse
Usually ready in 1 hourPairs well with
Lian Li O11 Dynamic Mini V2
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Regular
- PRODUCT NAME: O11D MINI V2
- MODEL NO: O11DMIV2 / XO11DMIV2W
- COLOR: BLACK / WHITE
- DIMENSIONS: 423.6mm x 273.3mm x 391.95mm (DxWxH)
- MATERIALS: 2mm Aluminum Panel / 1mm Mesh Panel / 4.0mm Tempered Glass
- MOTHERBOARD SUPPORT: Back-Connect ATX / ATX / Micro-ATX / Mini-ITX
- EXPANSION SLOT: 5
- STORAGE:
- Drive Cage: 2.5” SSD x 2 or 3.5” HDD x 2
- Behind MB Tray: 2.5″ SSD x 2 - GPU LENGTH CLEARANCE: 400 mm
- CPU COOLER HEIGHT CLEARANCE: 160 mm
- PSU SUPPORT: ATX (Under 200mm)
- RADIATOR SUPPORT:
- Top: 240mm / 280mm / 360mm(Note: 280mm radiator requires mounting motherboard one slot lower)
- Side: 240mm - FAN SUPPORT:
- Top: 120mm x 3 or 140mm x 2
- Side: 120mm x 2
- Bottom: 120mm x 3
- Rear: 120mm x 1 - INCLUDED FANS: N/A
- DUST FILTER: Bottom x 1
- I/O PORTS:
- USB 3.0 x 2
- USB 3.2 Type C x 1
- Audio x 1
- Power Button x 1

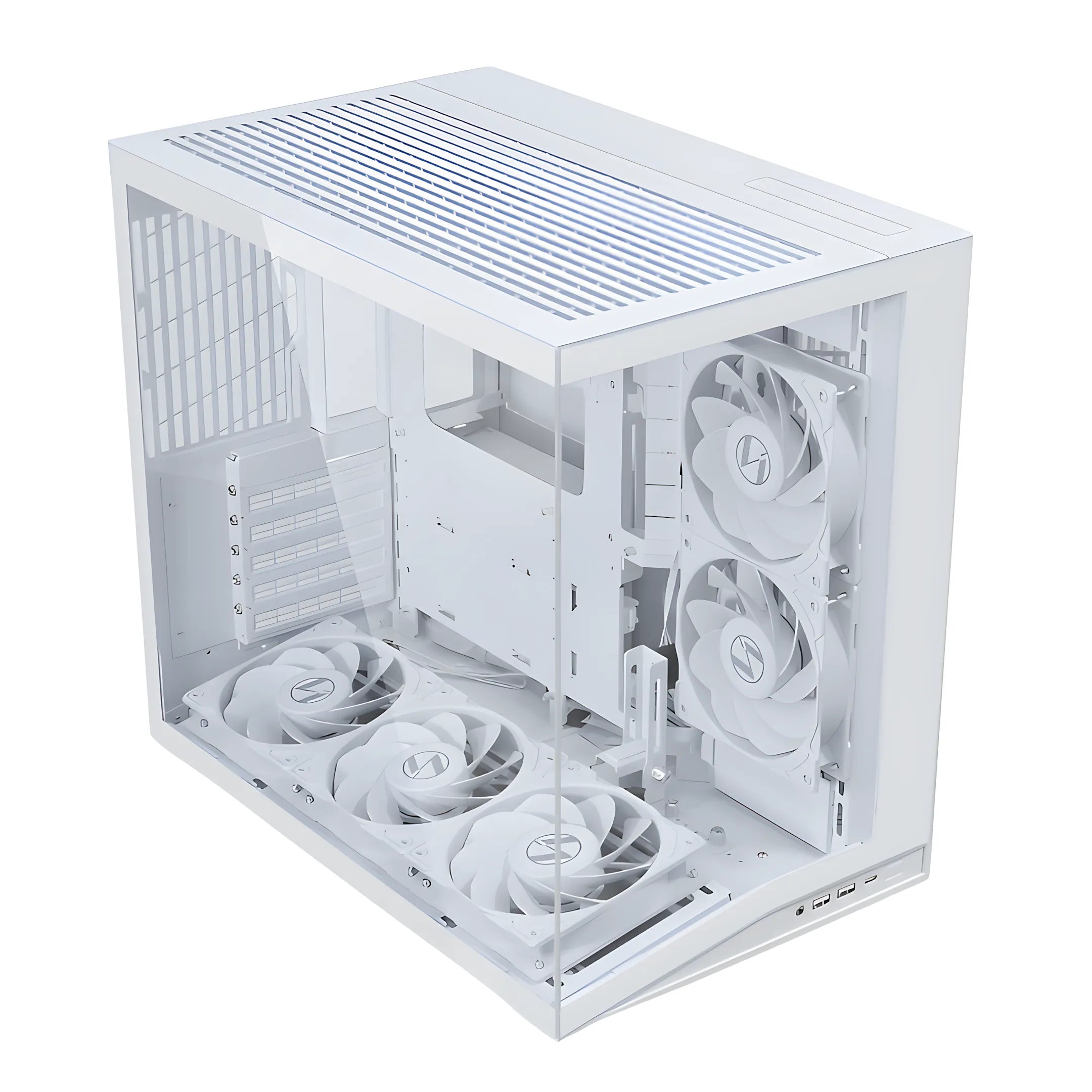

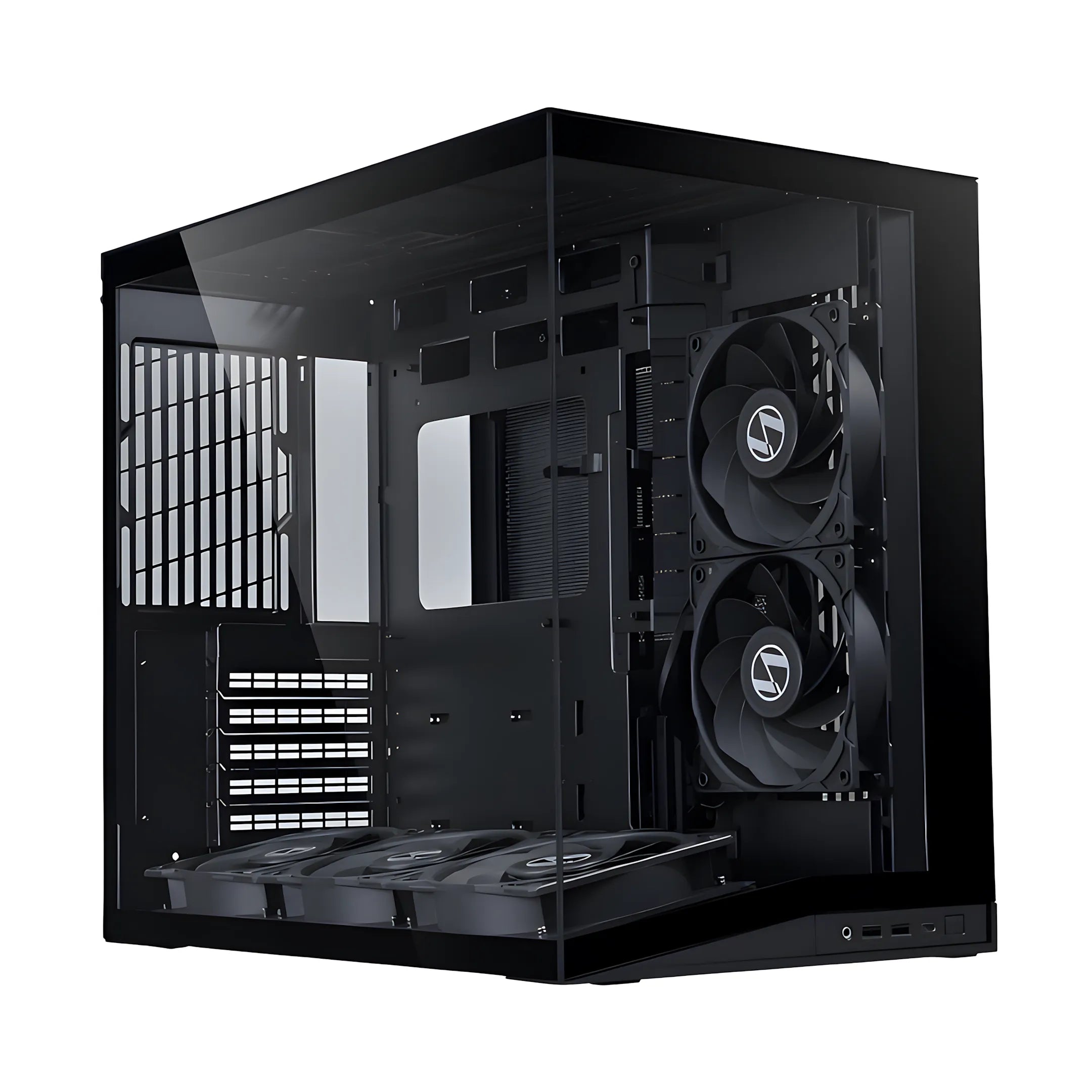

Flow
- PRODUCT NAME: O11D MINI V2 Flow
- MODEL NO: O11DMIV2 / FXO11DMIV2FW
- COLOR: BLACK / WHITE
- DIMENSIONS: 423.6mm x 273.3mm x 391.95mm (DxWxH)
- MATERIALS: 2mm Aluminum Panel / 1mm Mesh Panel / 4.0mm Tempered Glass
- MOTHERBOARD SUPPORT: Back-Connect ATXATX / Micro-ATX / Mini-ITX
- EXPANSION SLOT5
- STORAGE:
- Drive Cage: 2.5” SSD x 2 or 3.5” HDD x 2
- Behind MB Tray: 2.5″ SSD x 2 - GPU LENGTH CLEARANCE: 400 mm
- CPU COOLER HEIGHT CLEARANCE: 160 mm
- PSU SUPPORT: ATX (Under 200mm)
- RADIATOR SUPPORT:
- Top: 240mm / 280mm / 360mm(Note: 280mm radiator requires mounting motherboard one slot lower)
- Side: 240mm - FAN SUPPORT:
- Top: 120mm x 3 or 140mm x 2
- Side: 120mm x 2
- Bottom: 120mm x 3Rear: 120mm x 1 - INCLUDED FANS:
- Side: Reverse blade 120mm PWM fan x2
- Bottom: Reverse blade 120mm PWM fan x3 - DUST FILTER: Bottom x 1
- I/O PORTS:
- USB 3.0 x 2
- USB 3.2 Type C x 1
- Audio x 1
- Power Button x 1
