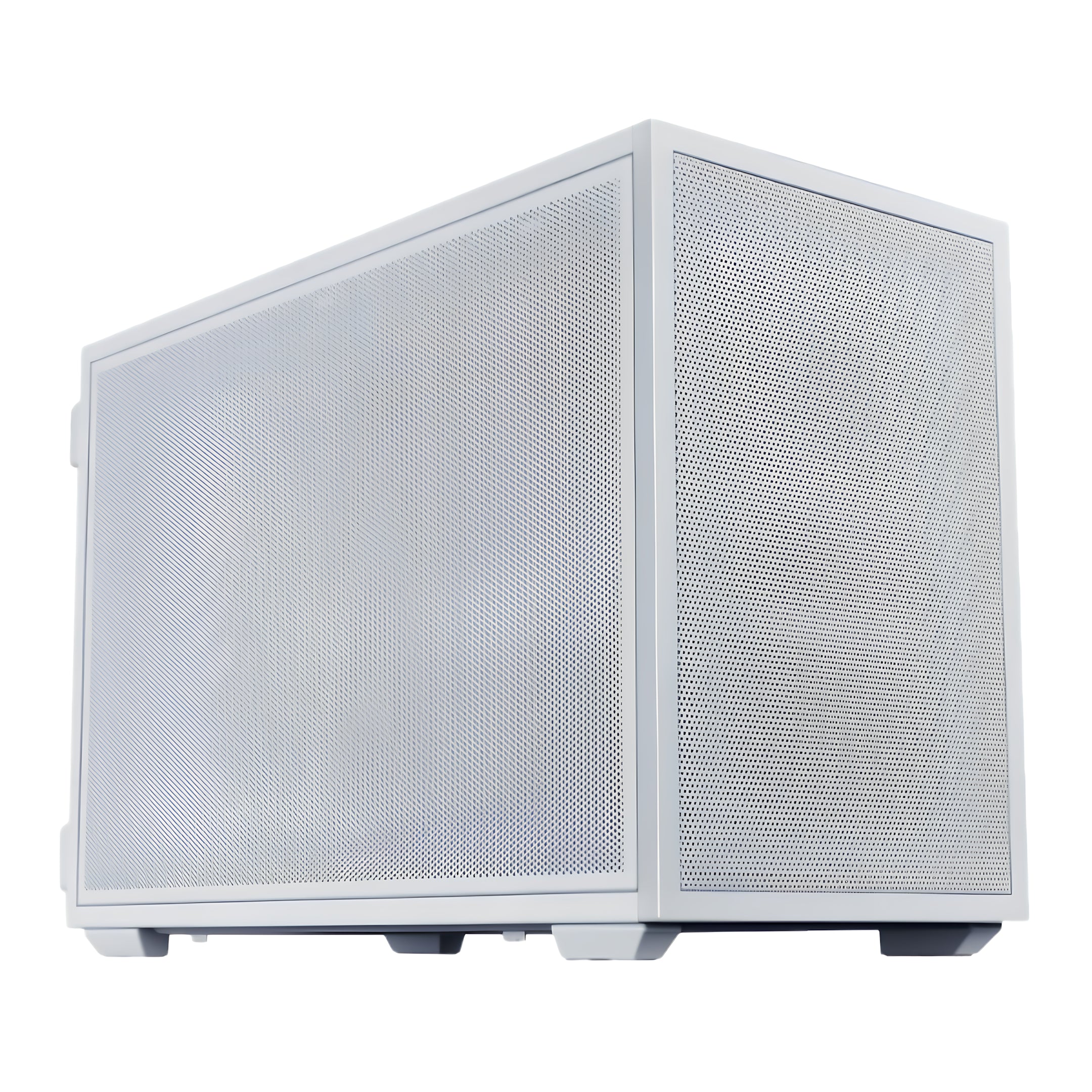

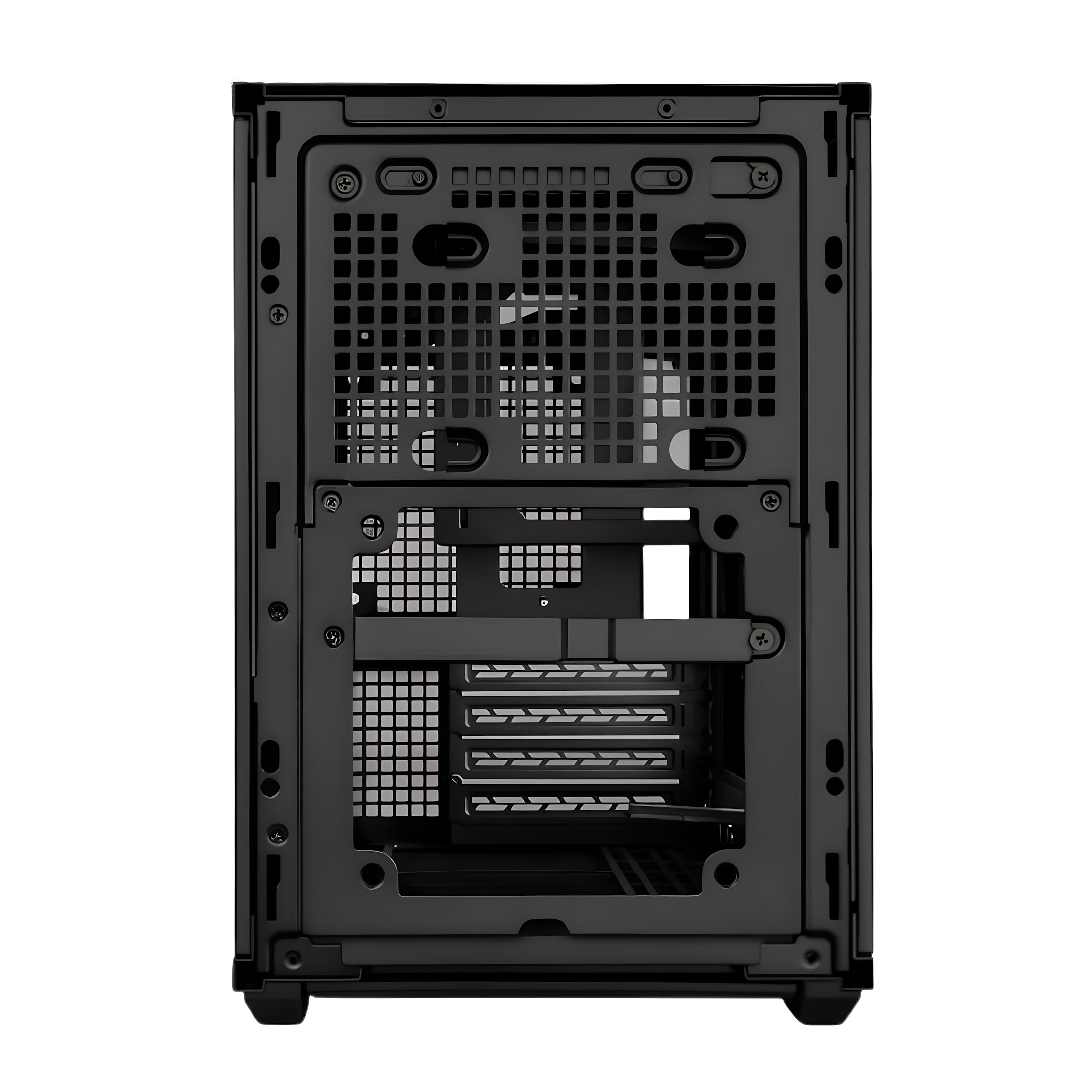

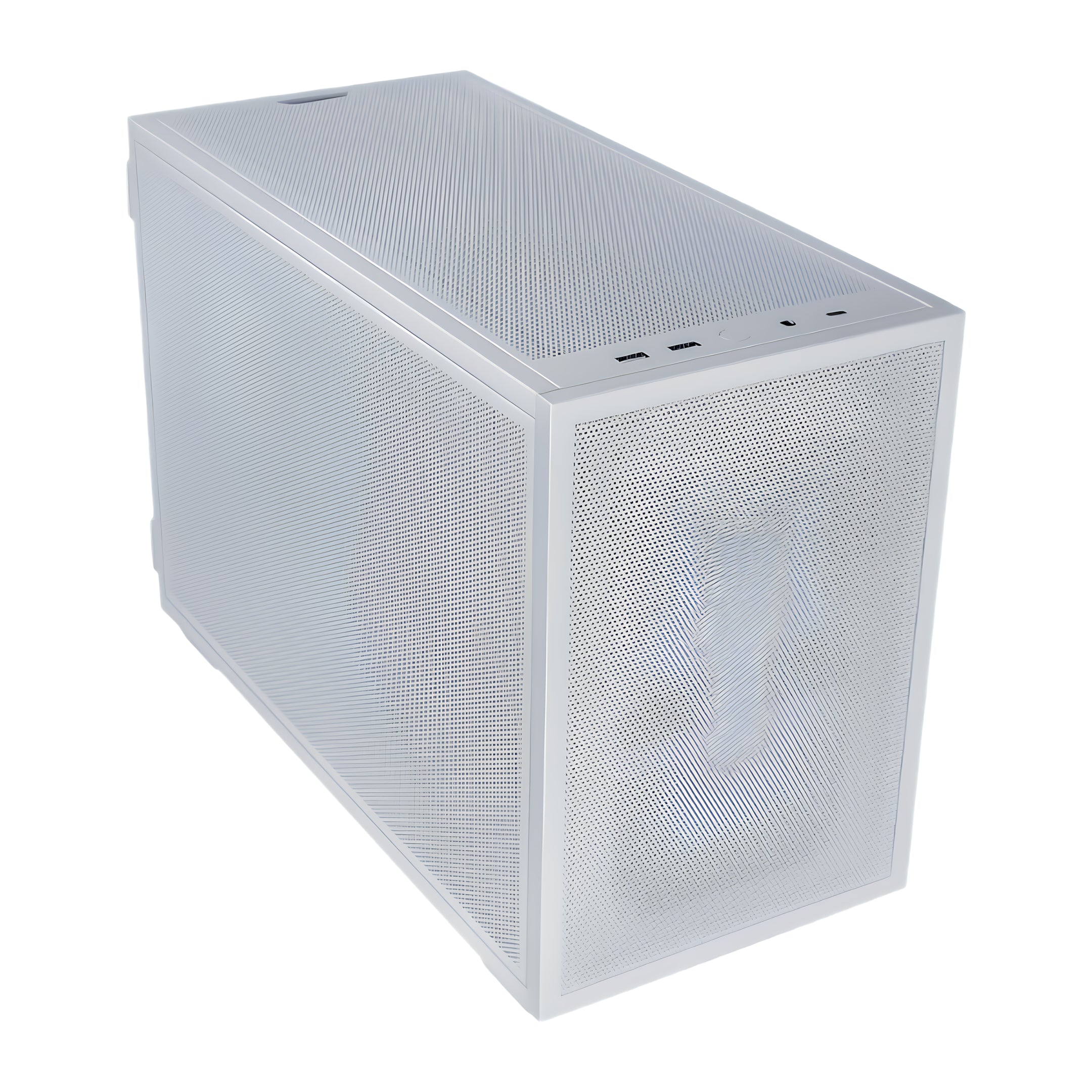

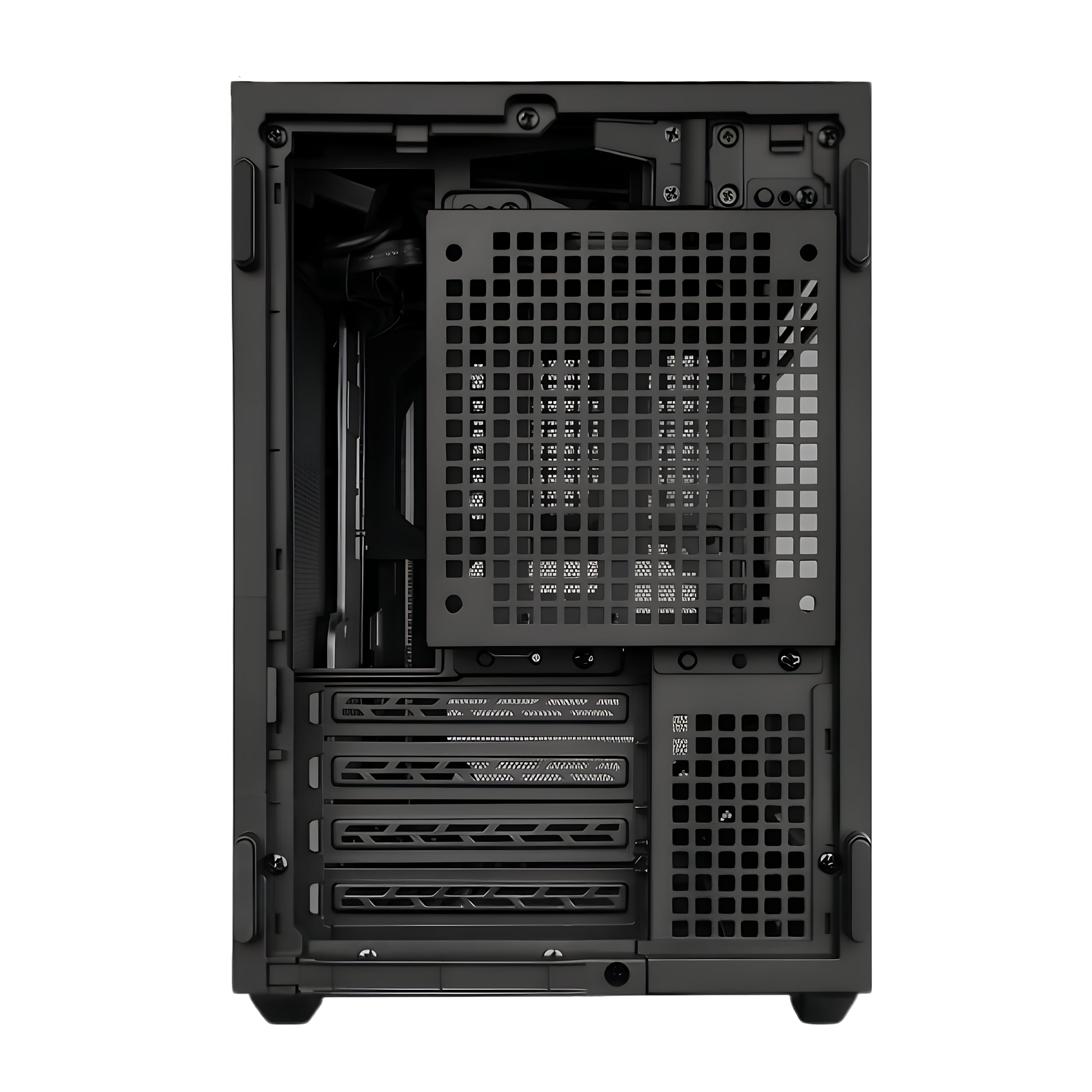

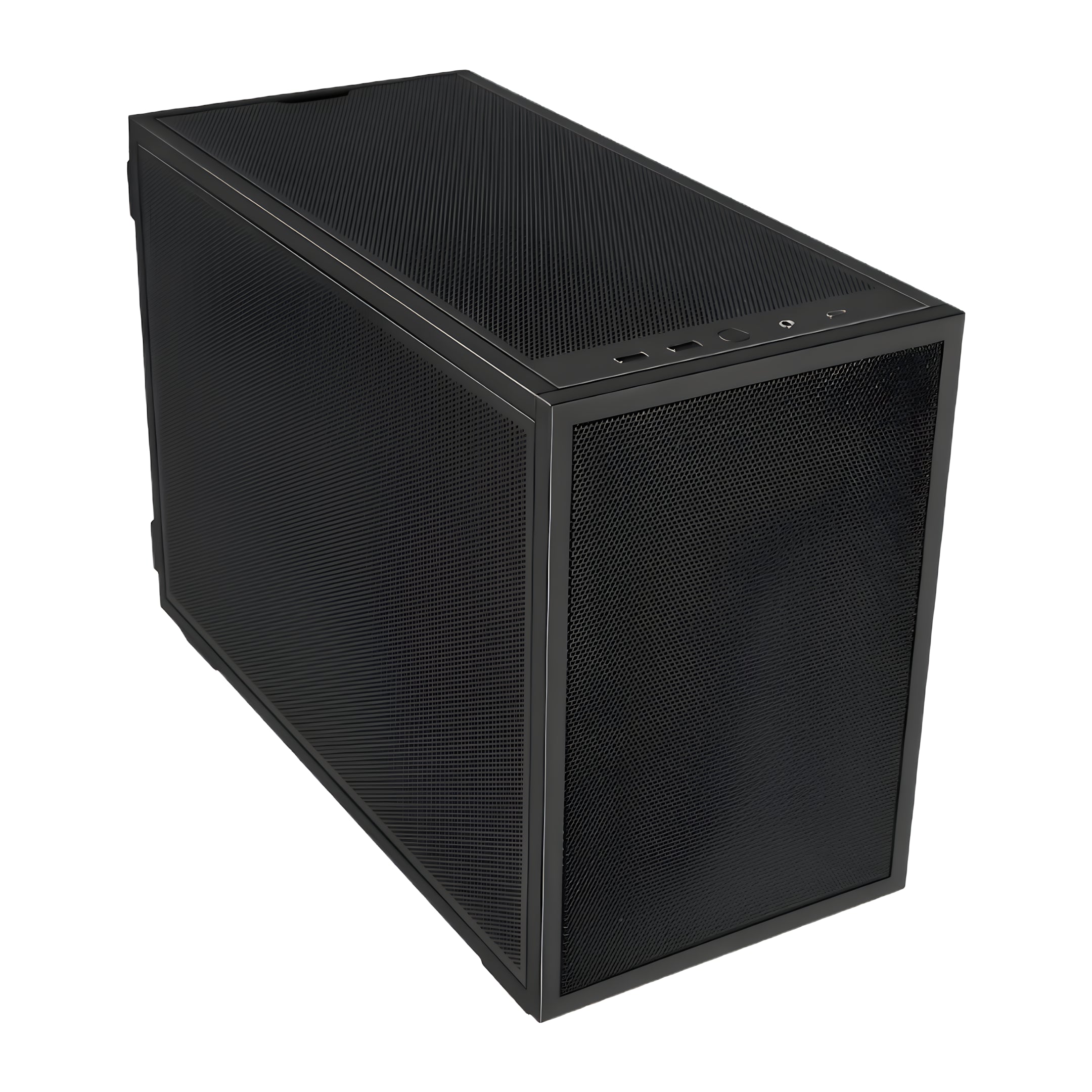

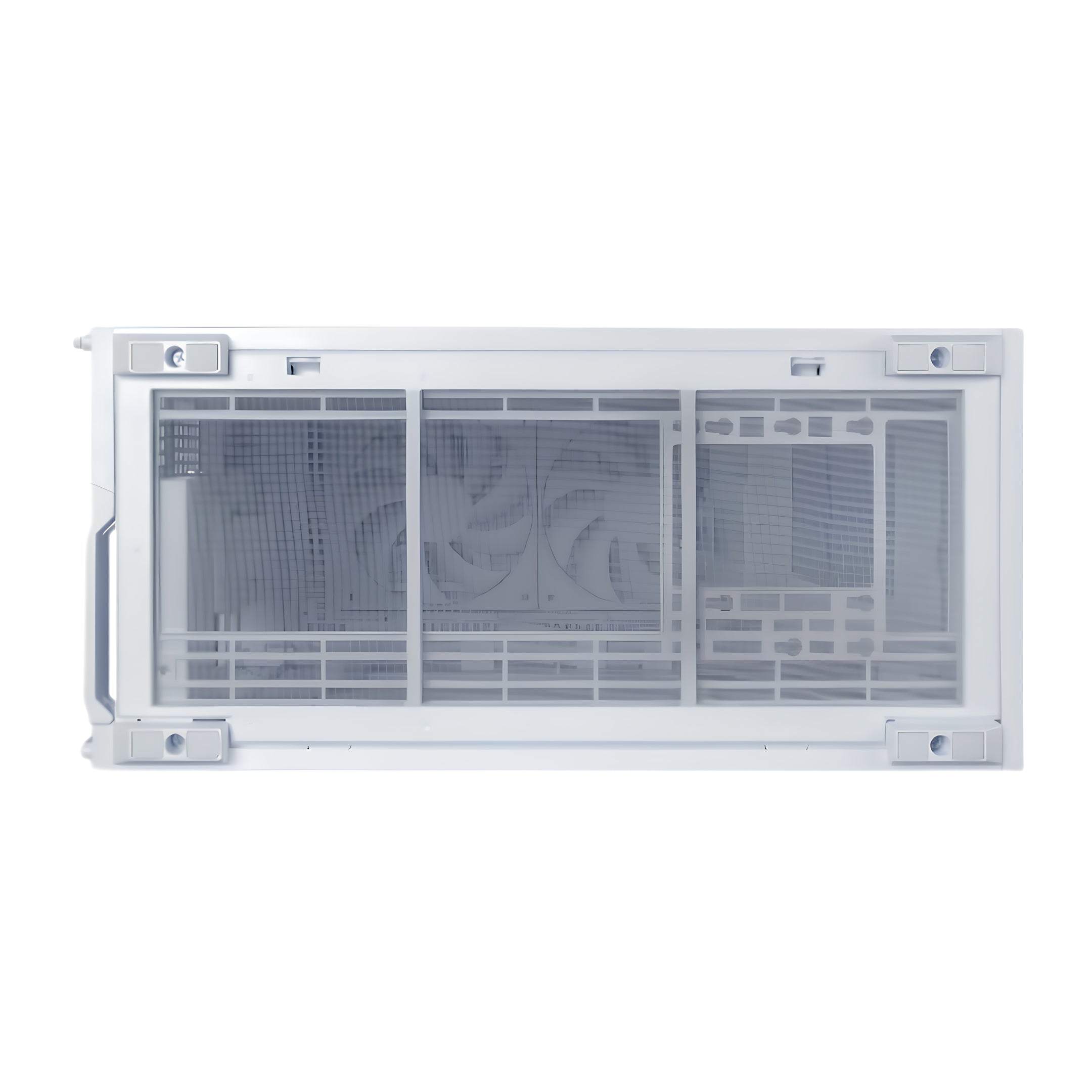

Lian Li B4 mATX
- Compact 21.3L mATX case with broad compatibility.
- Includes 2 pre-installed 120 × 120 × 15mm slim top fans.
- Removable top bracket simplifies CPU 8-pin routing and fan setup.

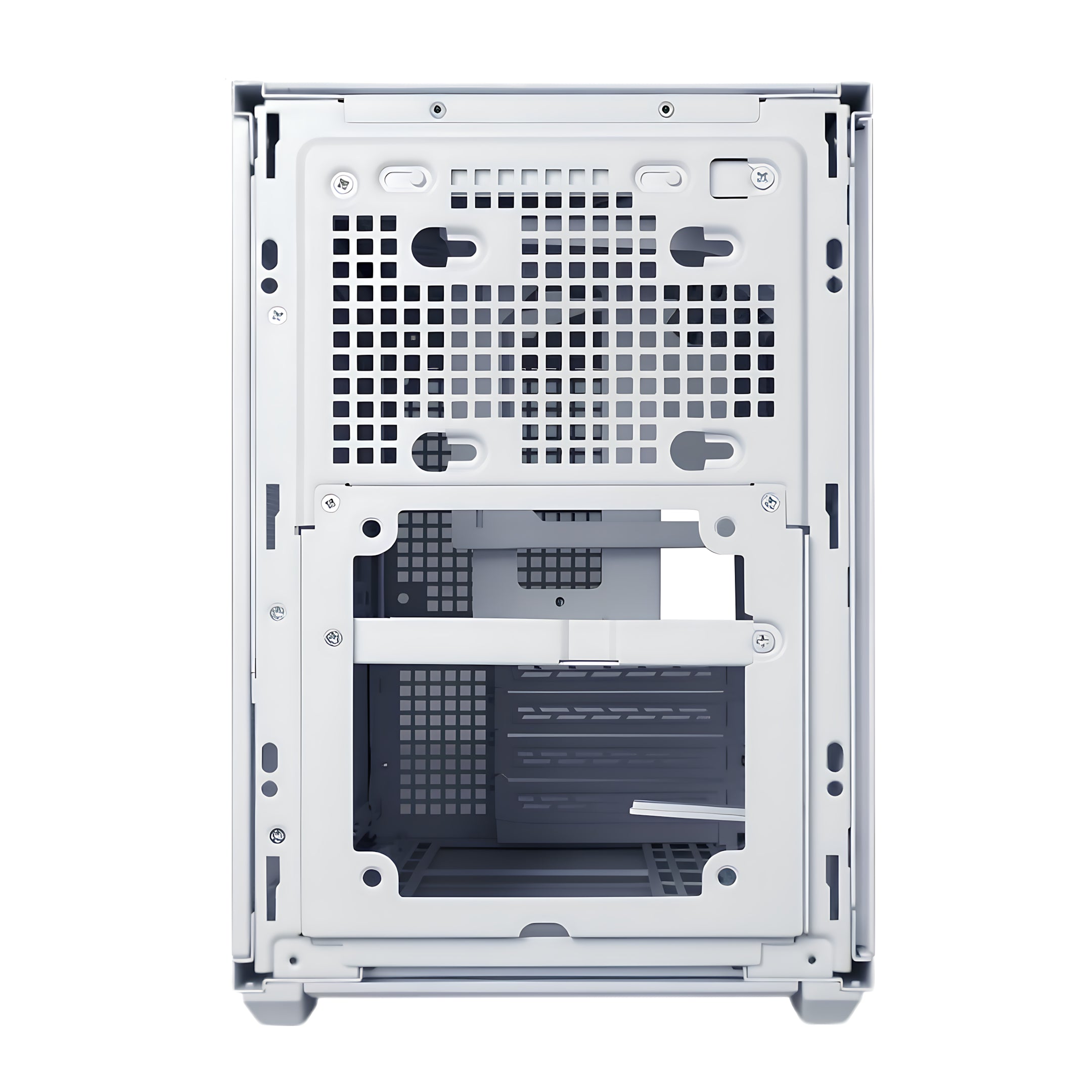

- Removable front bracket allows easier large GPU installation.
- Optional Vertical AeroDeck adds up to 3 × 120mm or 2 × 140mm fans for GPU cooling.
Product Highlights
Form Factor
Couldn't load pickup availability
Pickup currently unavailable at 12 Residence Warehouse
Pairs well with
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Technical Specifications
PHYSICAL SPECIFICATIONS

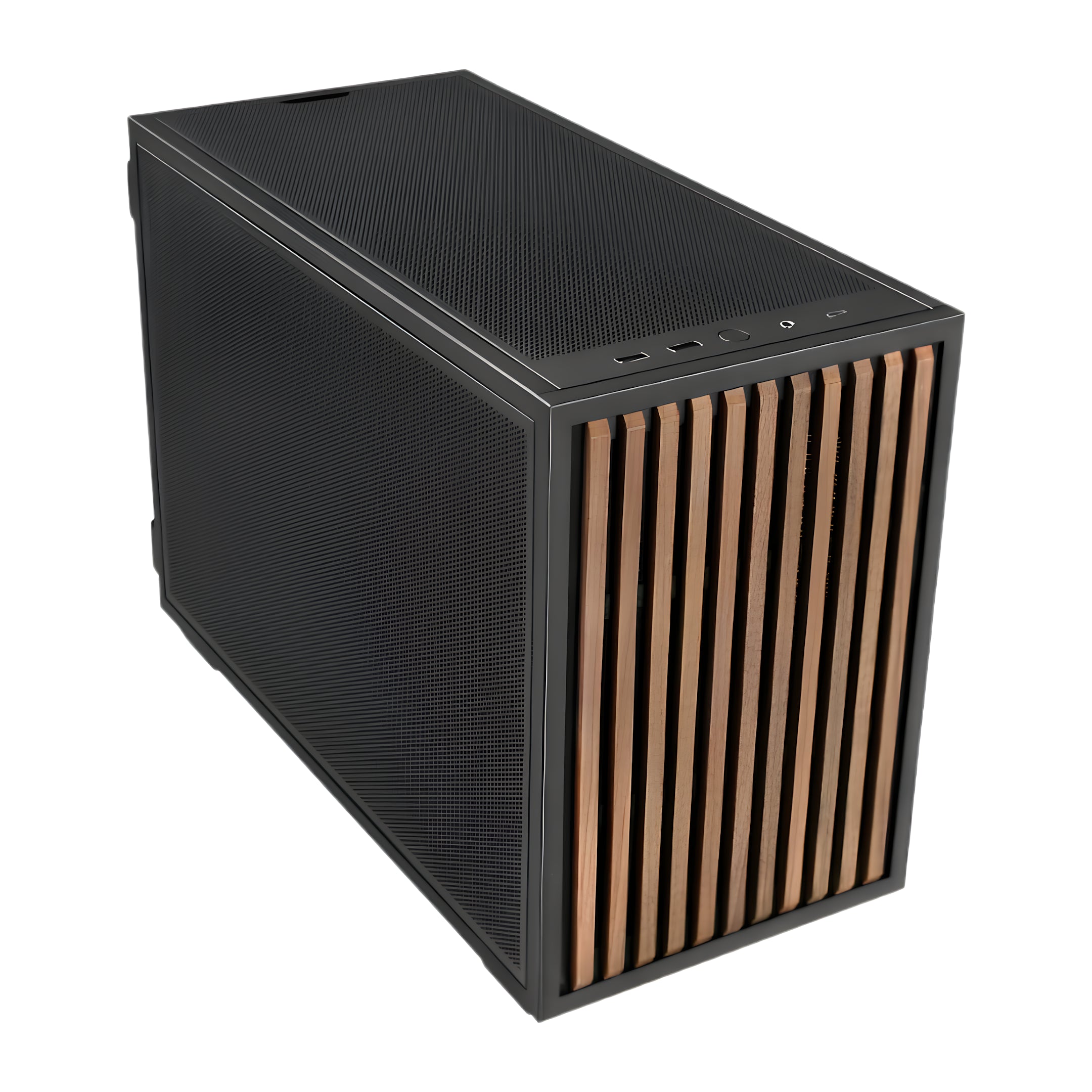

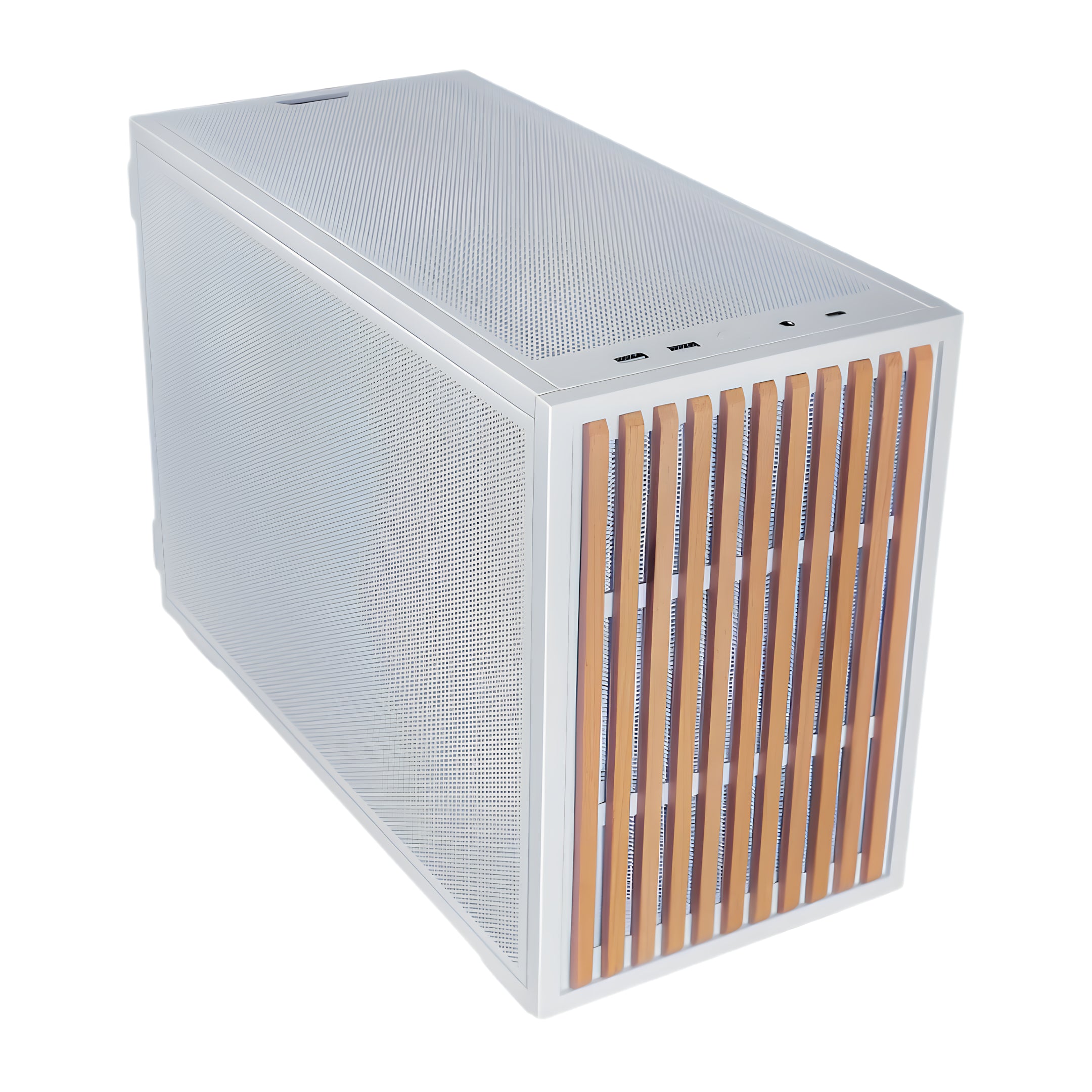

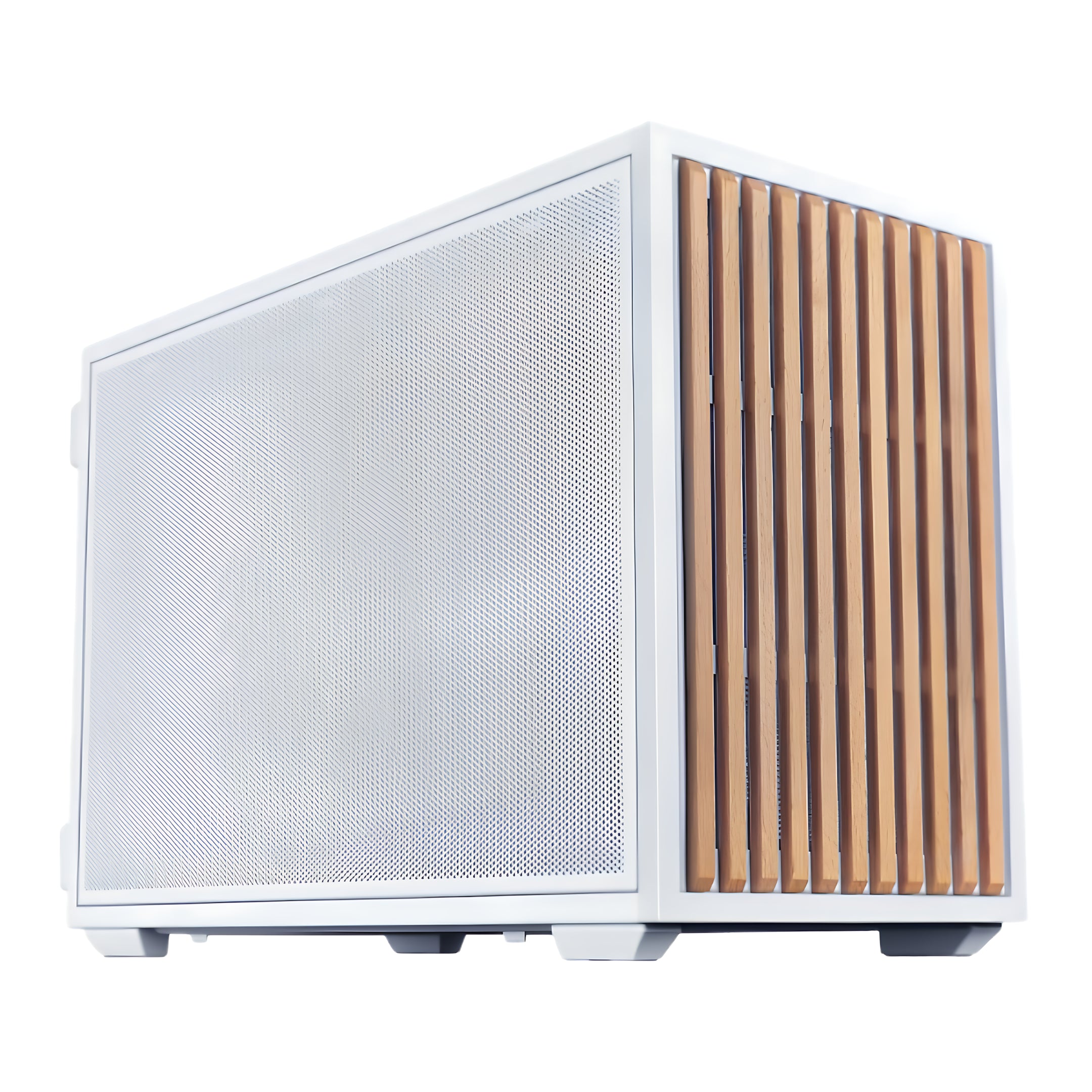

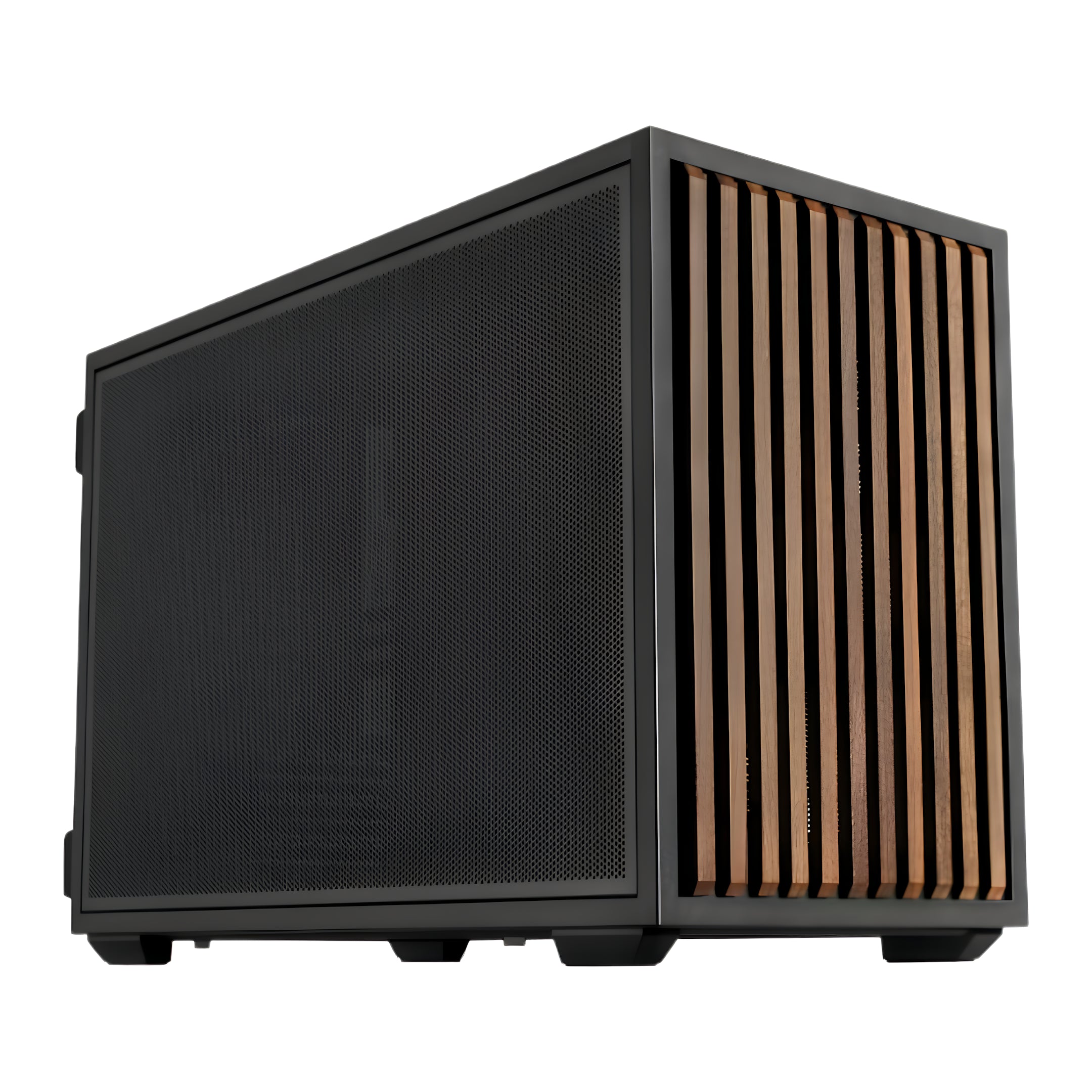

- Model No.: B4X / B4W (Mesh) — B4X-WD / B4W-WD (Wood)
- Color: Black / White
- Dimensions (D x W x H): 420 x 191 x 288mm

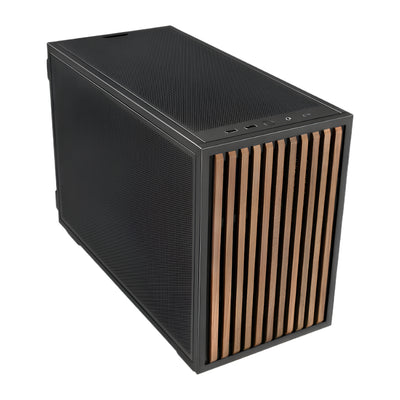

- Material: Steel (Mesh) — Steel & Wood, Walnut/Beech (Wood)
MOTHERBOARD SUPPORT
- Back-Connect: No
- Compatible boards: Micro-ATX, Mini-ITX
STORAGE
- Front: 2.5" SSD x 1
- Bottom: 3.5" HDD x 1 or 2.5" SSD x 1
CLEARANCE
- GPU length: 358mm
- CPU cooler height: 159mm (165mm without side fan bracket)
POWER SUPPLY
- PSU support: ATX (up to 140mm) / SFX
RADIATOR SUPPORT

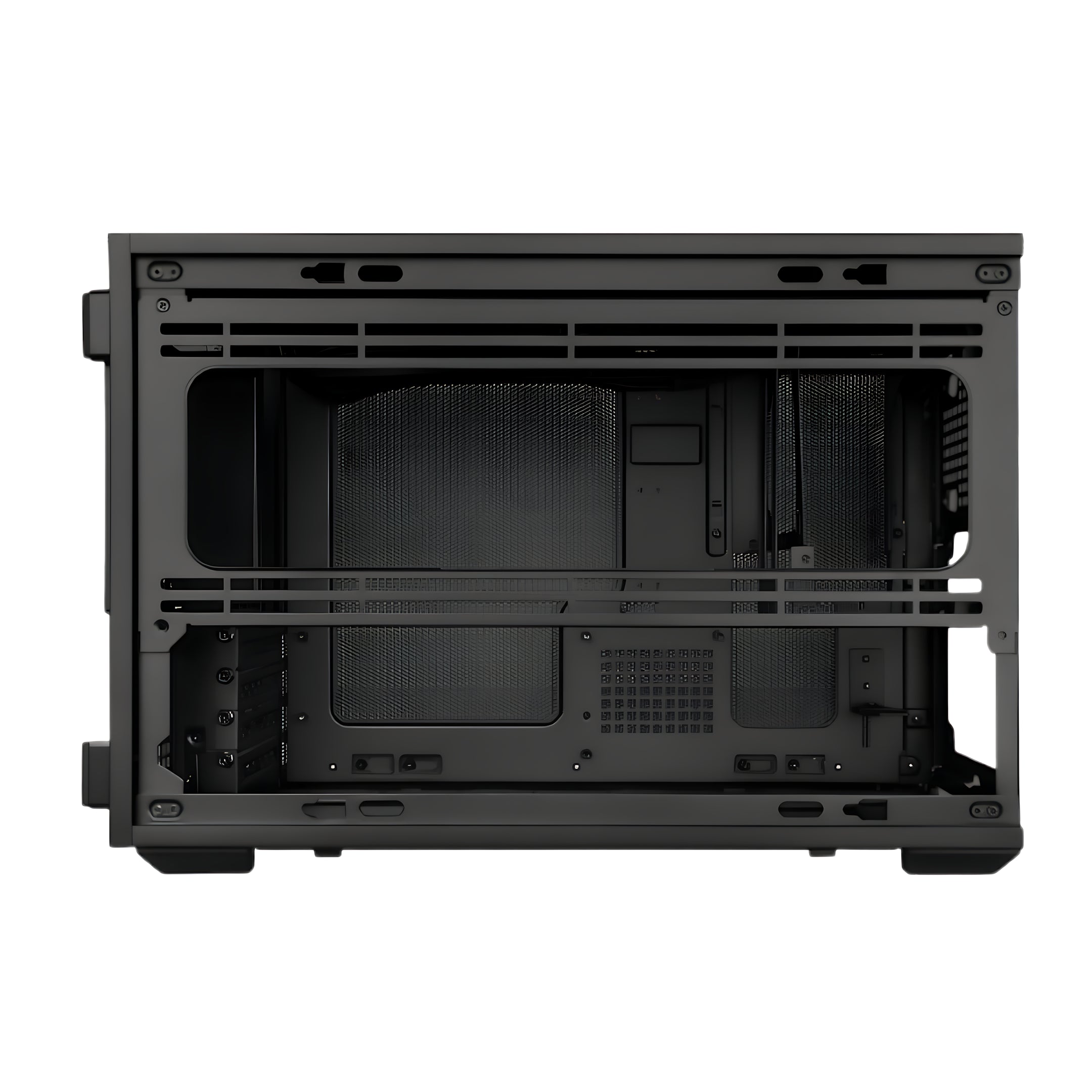

- Side (with SFX PSU): 360mm / 280mm / 240mm
- Side (with ATX PSU): 240mm
FAN SUPPORT — MESH EDITION
- Top: 120mm x 2 (pre-installed)
- Side (with SFX PSU): 120mm x 3 / 140mm x 2
- Side (with ATX PSU): 120mm x 2
- Front (SFX PSU only): 120mm slim fan x 1
- Bottom: 120mm x 3 / 140mm x 2
- Rear: 120mm x 1
FAN SUPPORT — WOOD EDITION
- Top: 120mm x 1
- Side (with SFX PSU): 120mm x 3 / 140mm x 2
- Side (with ATX PSU): 120mm x 2
- Front: 120mm x 3
- Bottom: 120mm x 1
INCLUDED FANS
- Top: 120 x 120 x 15mm (x2)
DUST FILTER

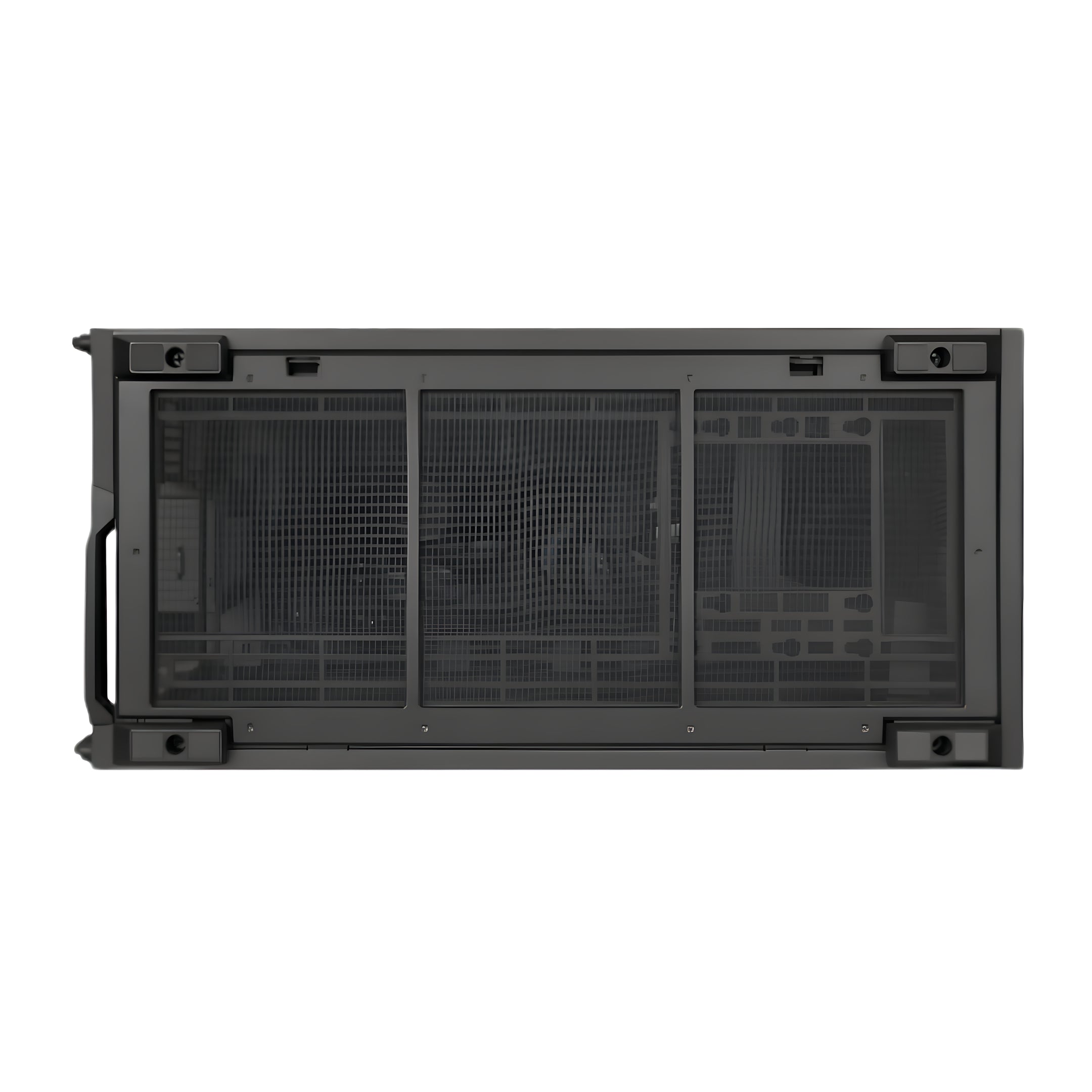

- Bottom: Magnetic filter x 1
I/O PORTS
- USB 3.0 Type-A x 2
- Power button x 1
- Audio jack x 1
- USB 3.2 Type-C x 1
