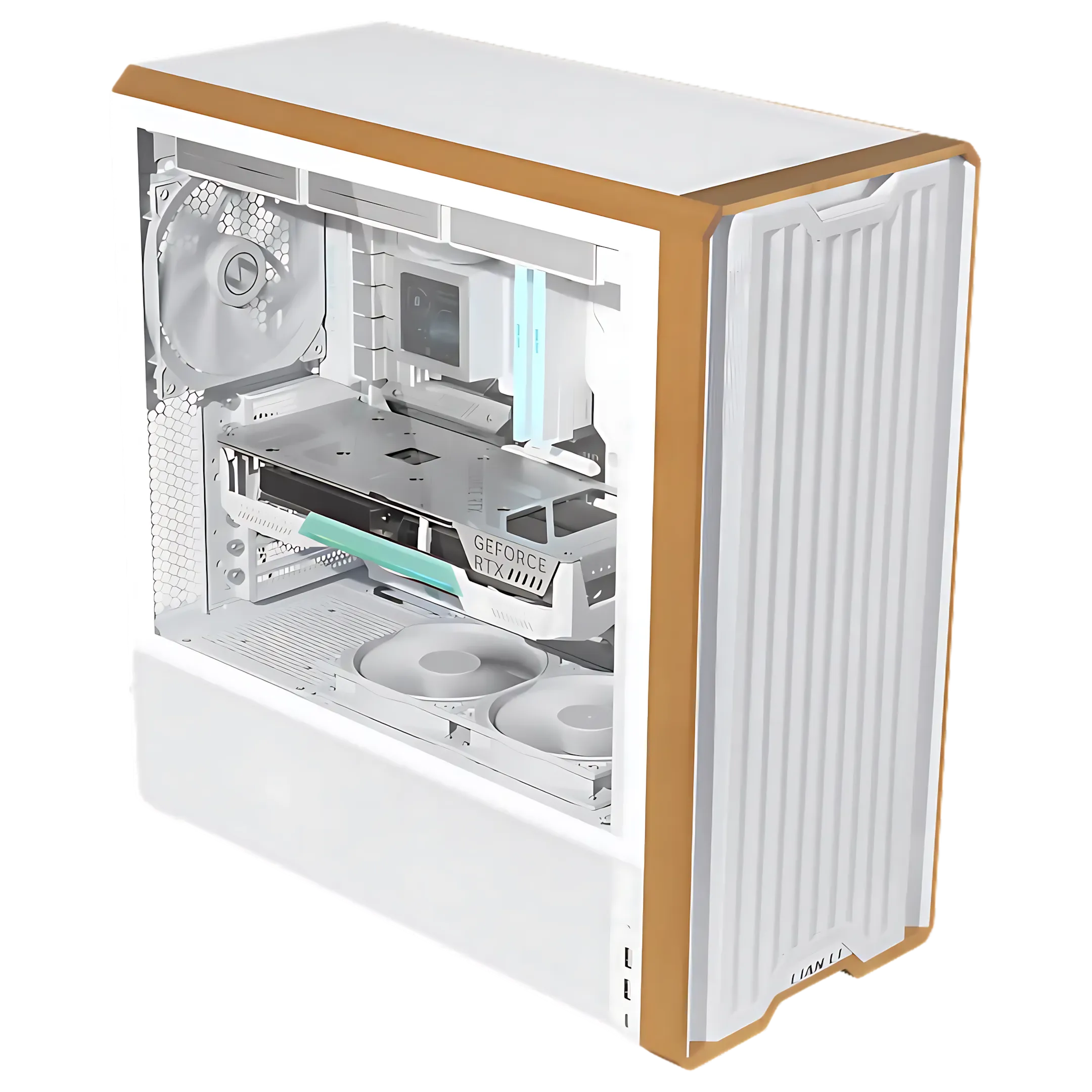

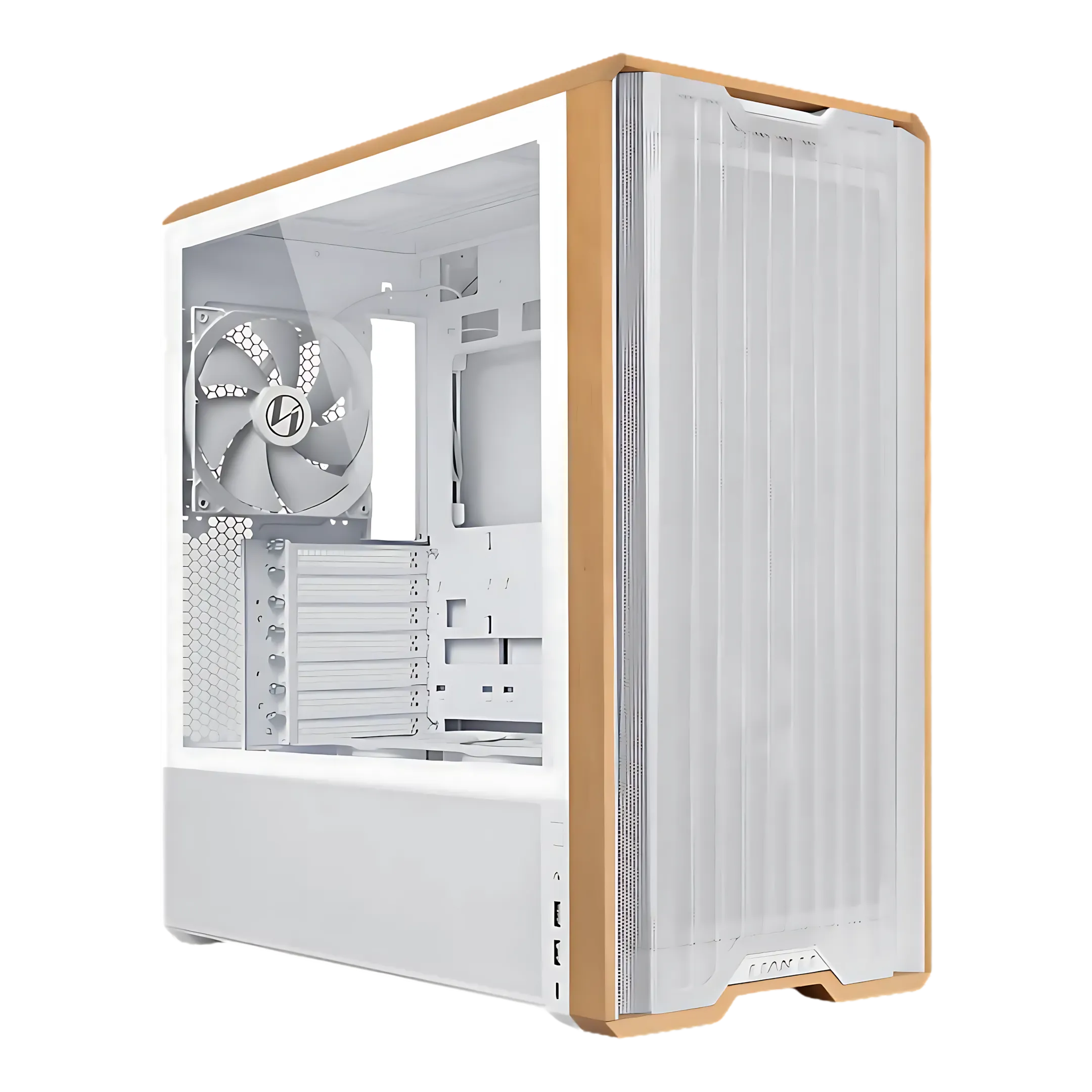

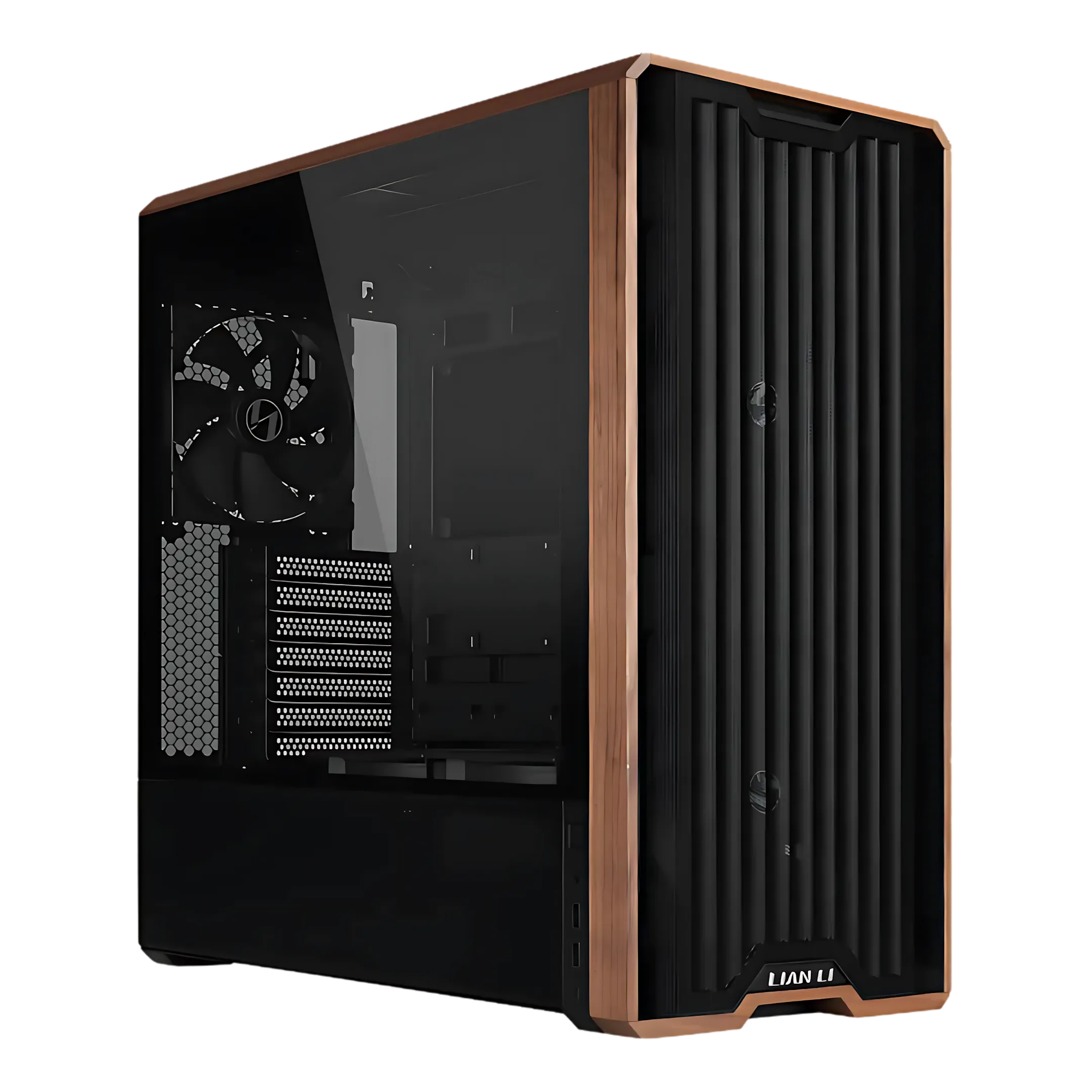

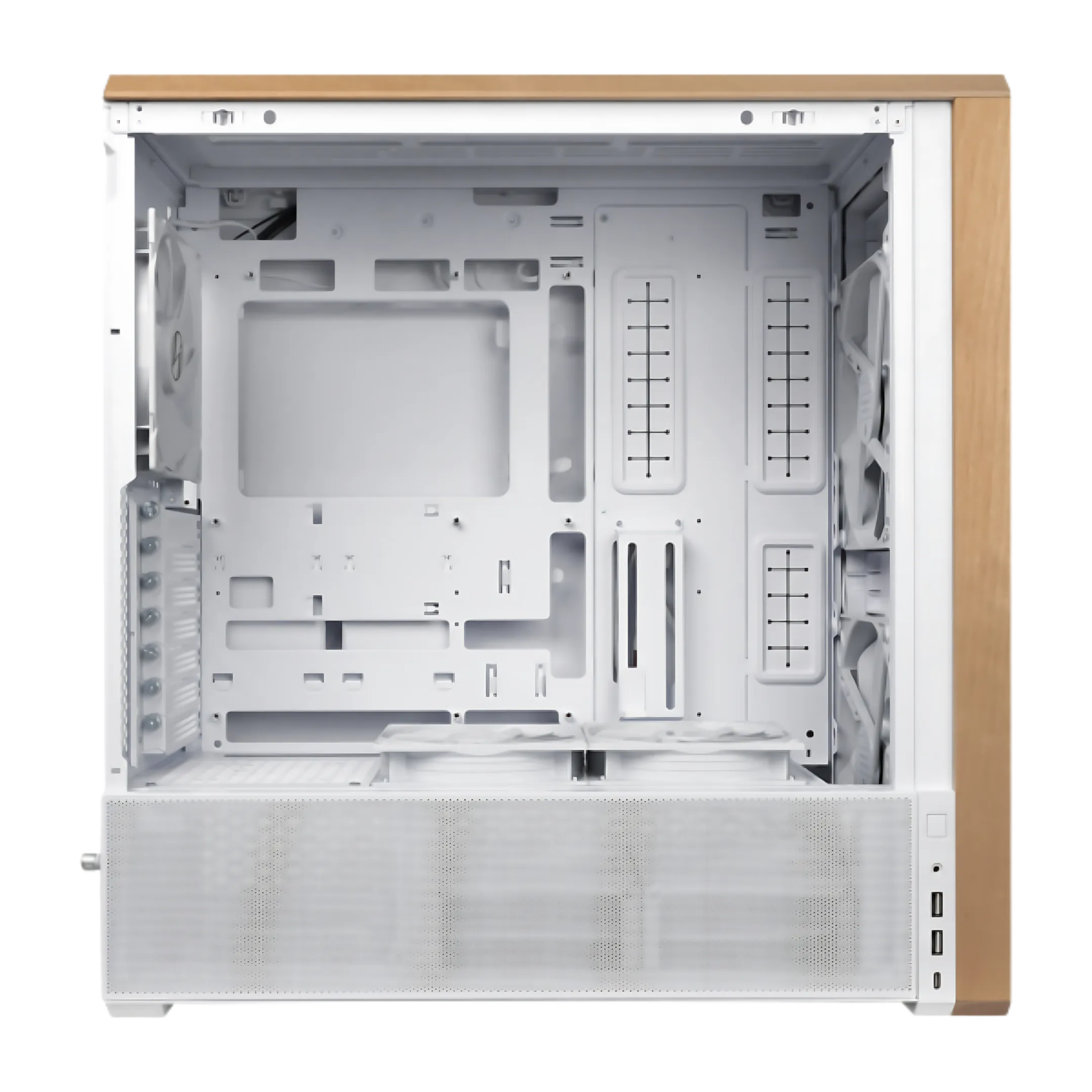

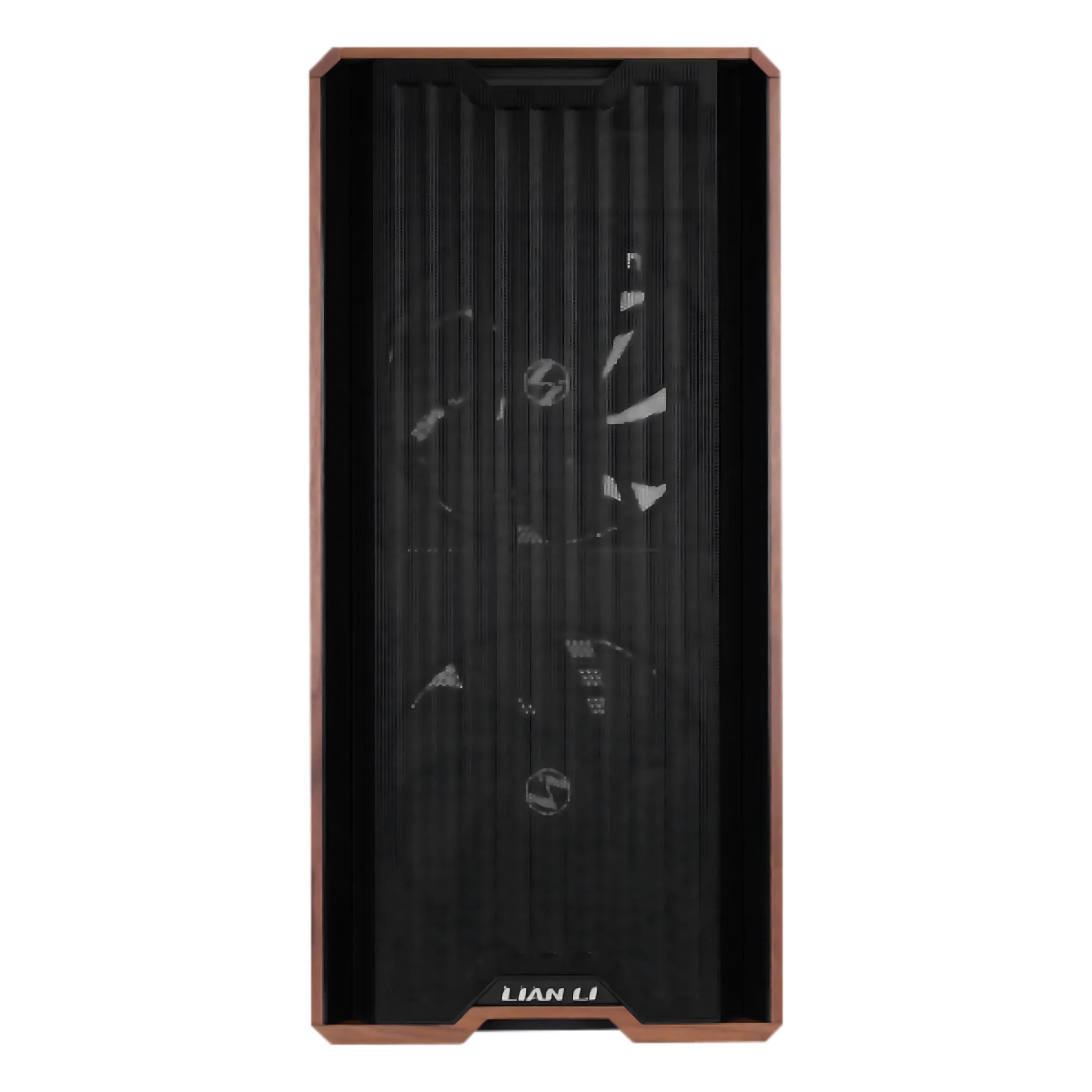

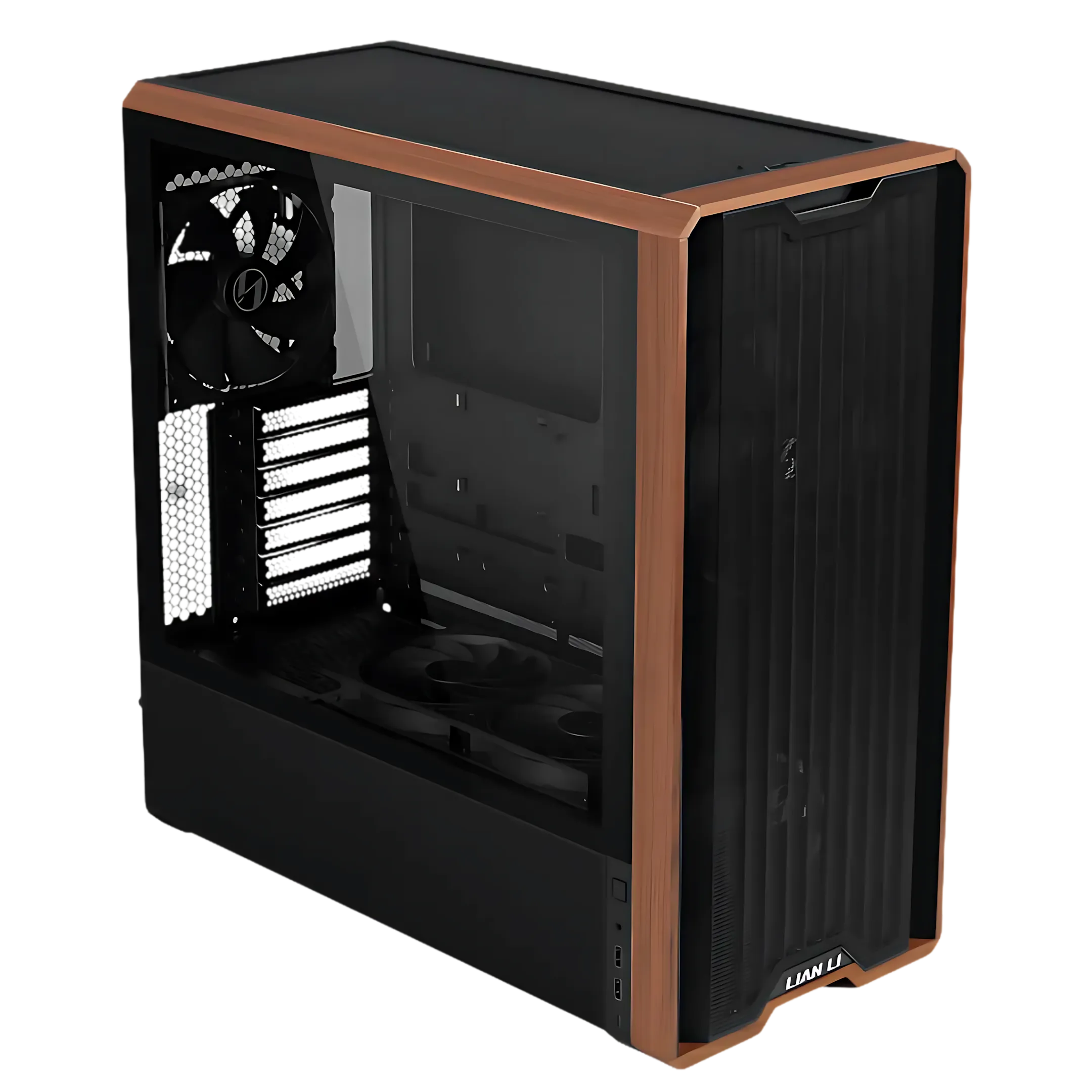

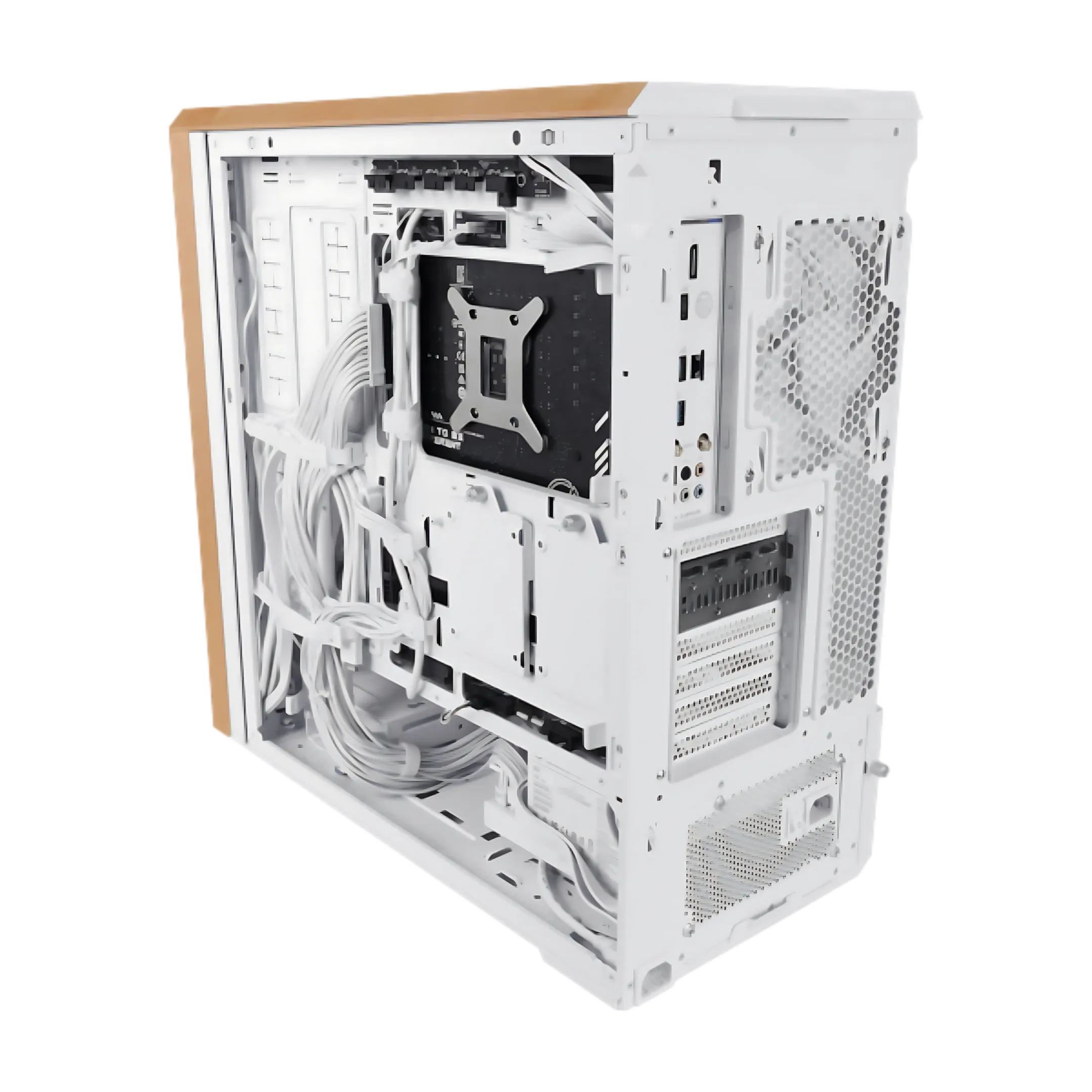

Lian Li Lancool 217
- Mid-tower chassis designed for advanced workstations and high-performance setups
- Compatible with back-connect motherboards for ultra-clean cable routing
- Supports up to E-ATX / EEB motherboards and dual PSU mounting orientations
- Comes pre-installed with 5 high-performance fans for optimal out-of-box airflow
- Tool-less front fan mounting system for effortless installation and maintenance
Product Highlights
Form Factor
Fans Included
Couldn't load pickup availability
Pickup currently unavailable at 12 Residence Warehouse
Pairs well with
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Technical Specifications
MODEL NAME:
- LAN217X
- LAN217W
COLOR:
- Black
- White
DIMENSION: (D)482mm x (W)238mm x (H)503mm
MATERIAL: Steel / 4.0mm Tempered Glass / Wood
MOTHERBOARD SUPPORT: SSI-EEB(Width Max 330mm) /E-ATX（Width Max 280mm）ATX / Micro-ATX/Mini-ITX
BACK CONNECT MOTHERBOARD SUPPORT: ATX / Micro-ATX
PSU SUPPORT LENGTH
- Standard Mode：ATX（Under 220mm）
- Rotated Mode：ATX（Under 180mm）
FAN SUPPORT

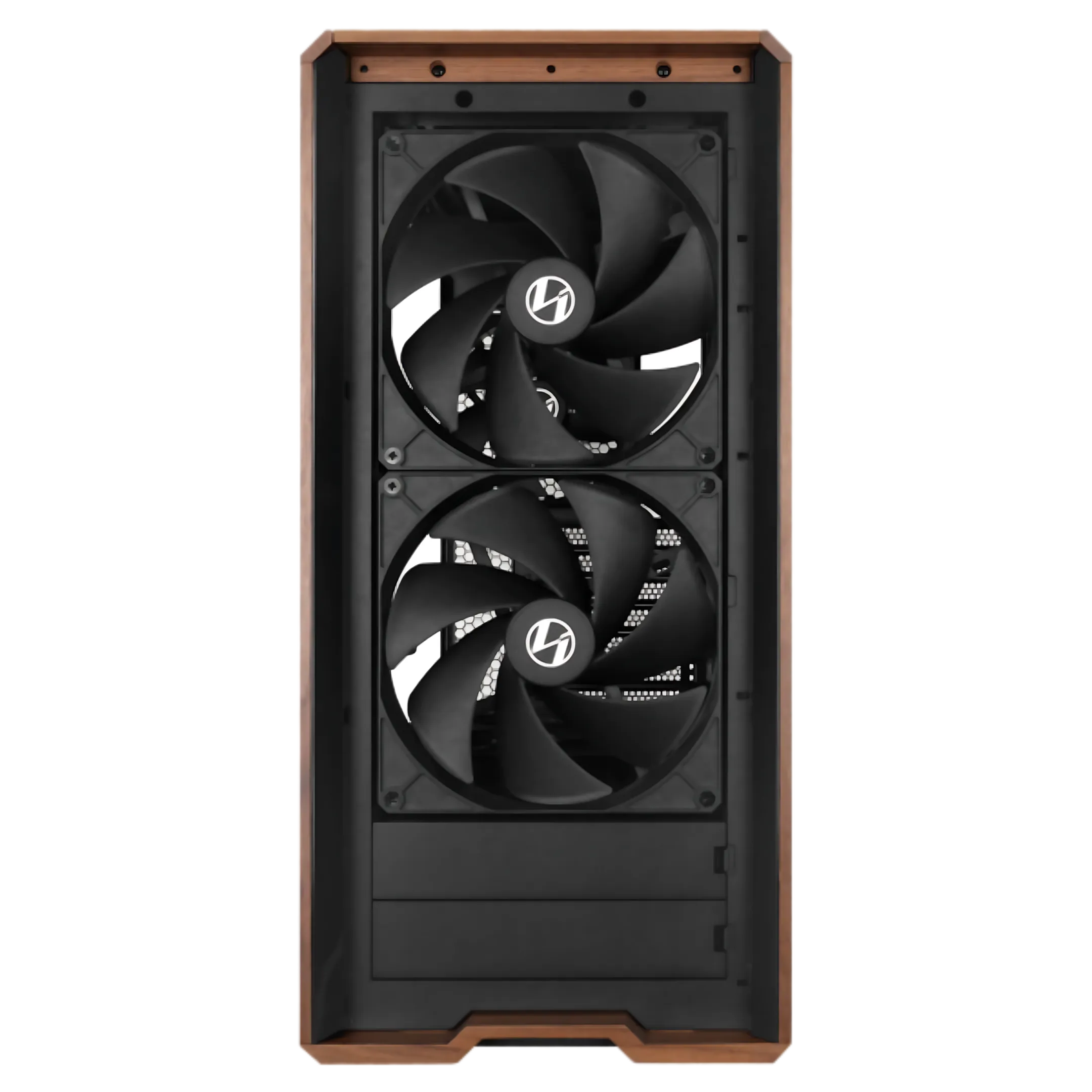

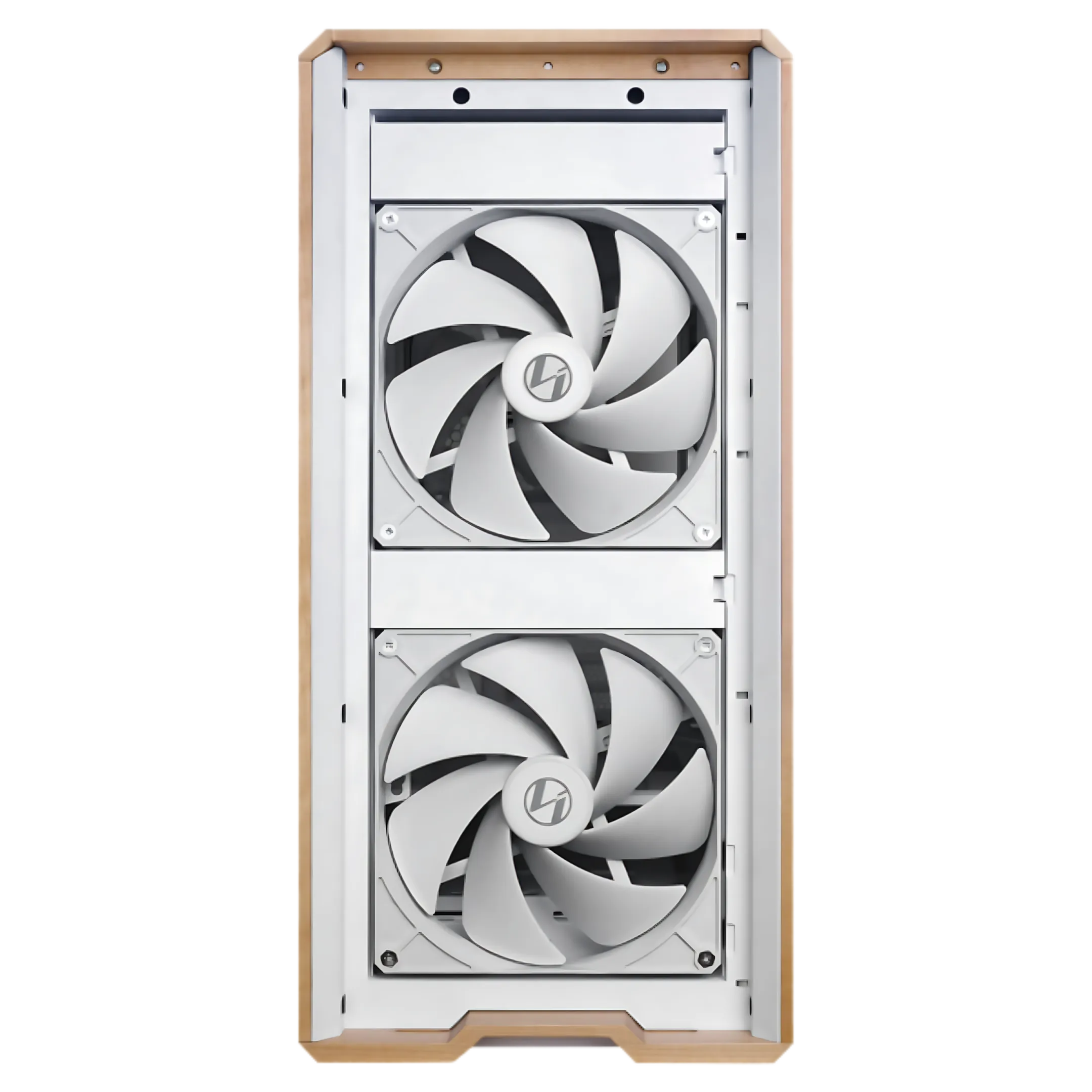

- Front: 170mm x 2 (Included) / 140mm x 3 / 120mm x 3
- Top: 3 x 120mm / 2 x 140mm
- Above PSU Shroud: 3 x 120mm (2 Included)
- Under the PSU shroud: 2 x 120mm
- Rear: 1x 140mm(Included) / 1x 120mm
RADIATOR SUPPORT: Top: 360 / 280 / 240mm
DRIVE SUPPORT:
Back Connect Motherboard: 2 x 2.5″ SSD /1 x 2.5″ SSD(behind MB)
2 x Drive Cage: 1 x 3.5″HDD+
1 x 2.5″ SSD+(1 x 3.5″ HDD or 1 x 2.5″ SSD)
PSU Shroud: 1 x 2.5″ SSD
GPU LENGTH CLEARANCE: 380mm (Max.)
CPU HEIGHT CLEARANCE: 180mm (Max.)
EXPANSION SLOT: 7
I/O PORTS:
- 2 x Power Button
- 2 x USB 3.0
- 1 x USB Type-C
- 1 x Audio
DUST FILTER: 1 x Bottom, 1 x Front
Hub:
- ARGB / FAN Hub：6 x PWM FAN port
- 4 x 5V ARGB port
