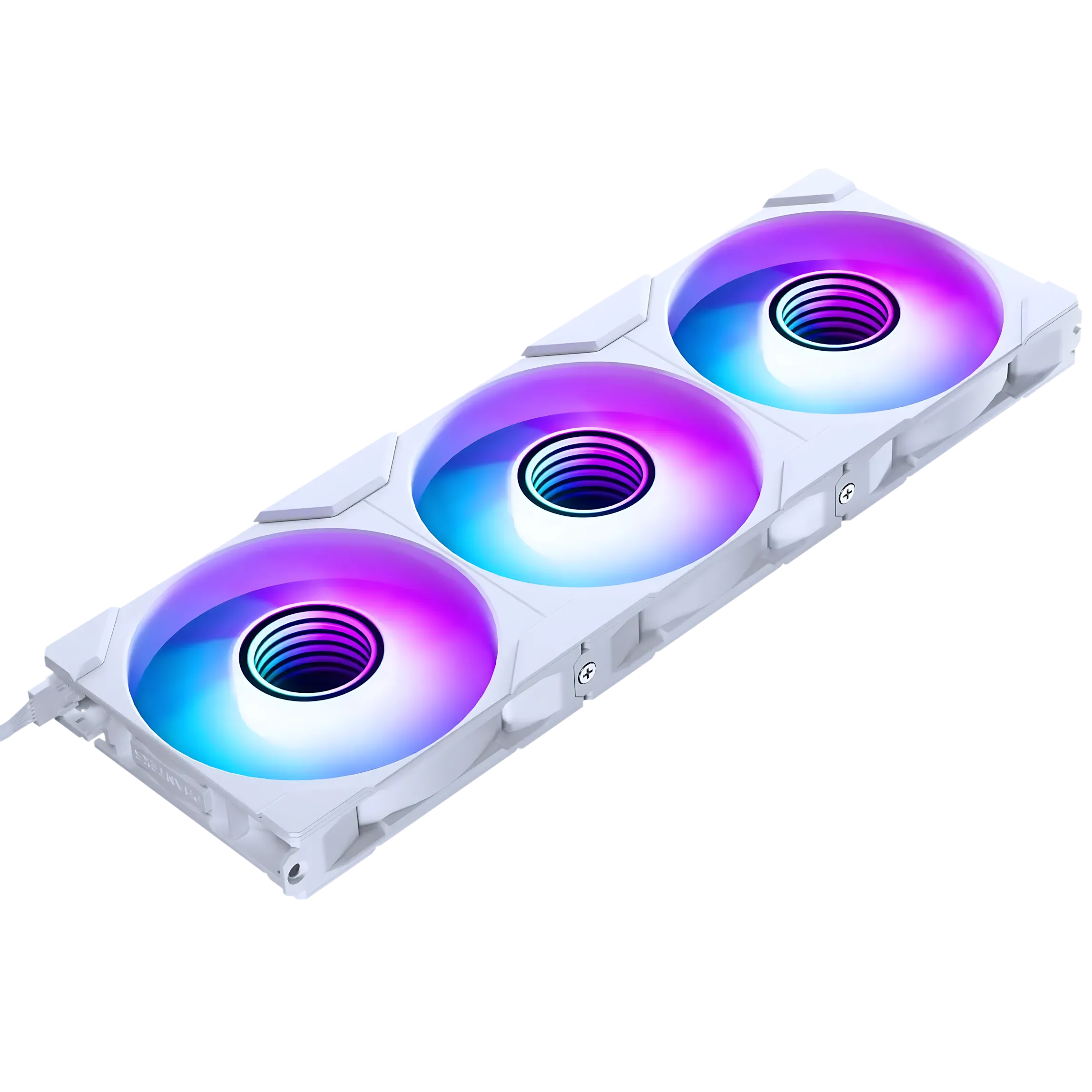

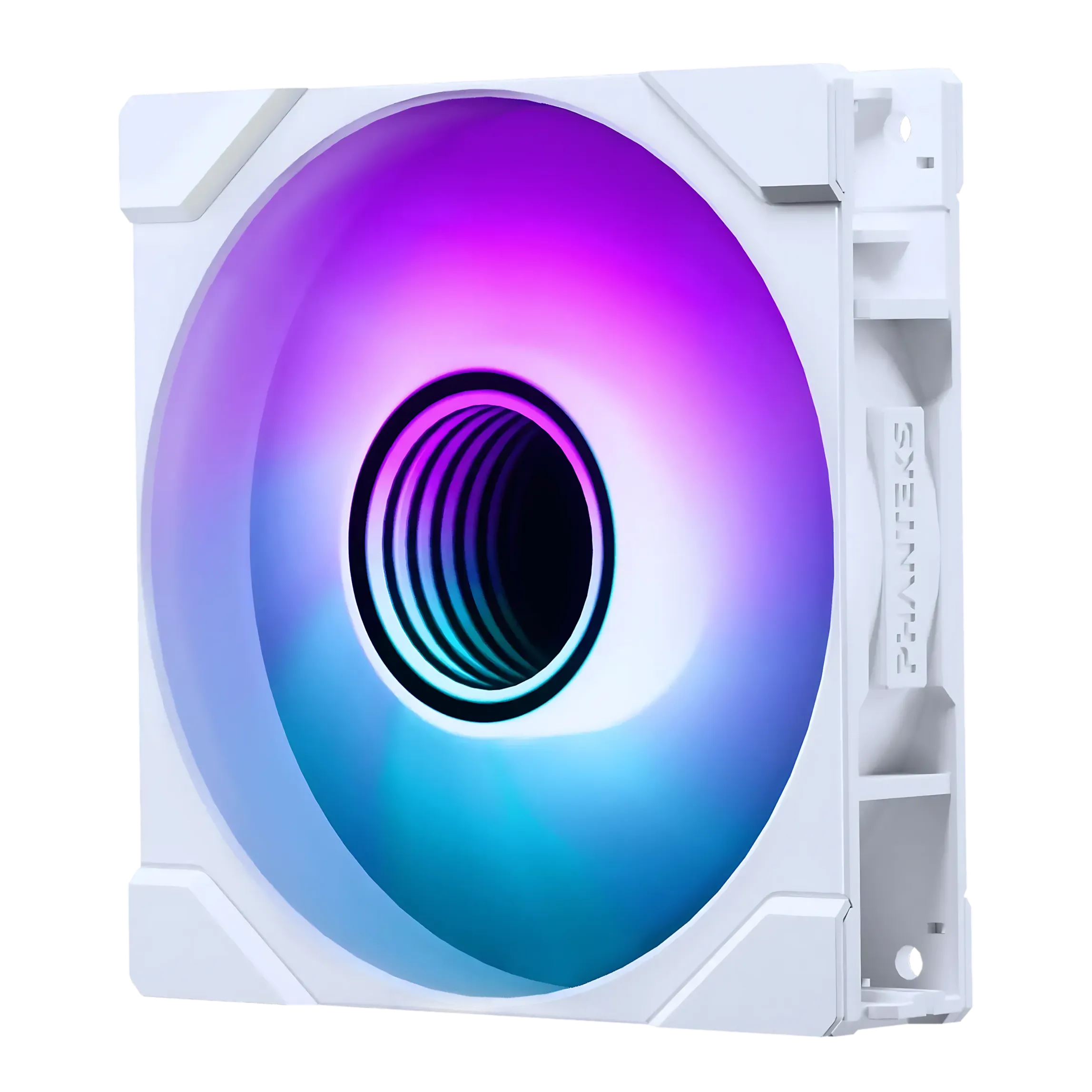

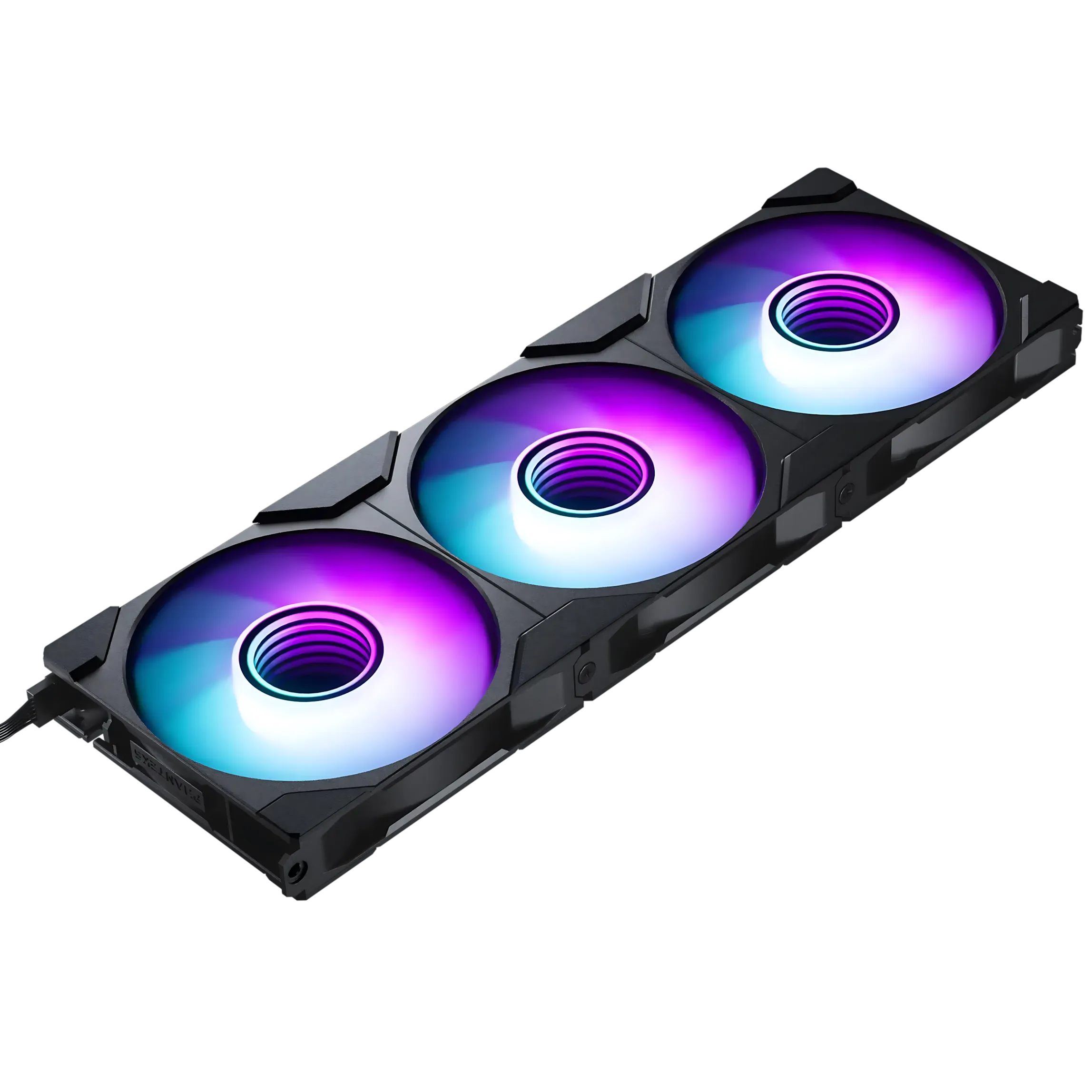

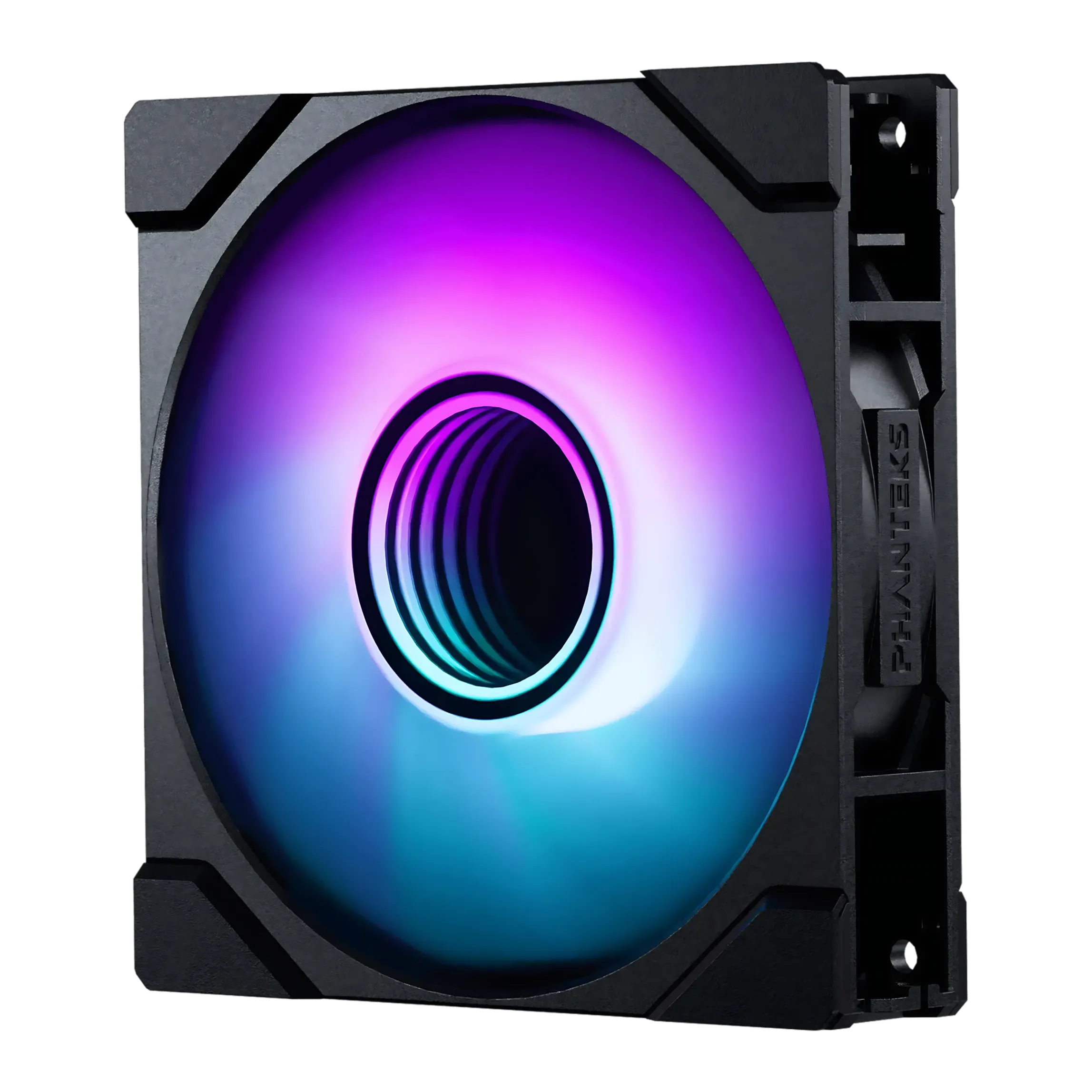

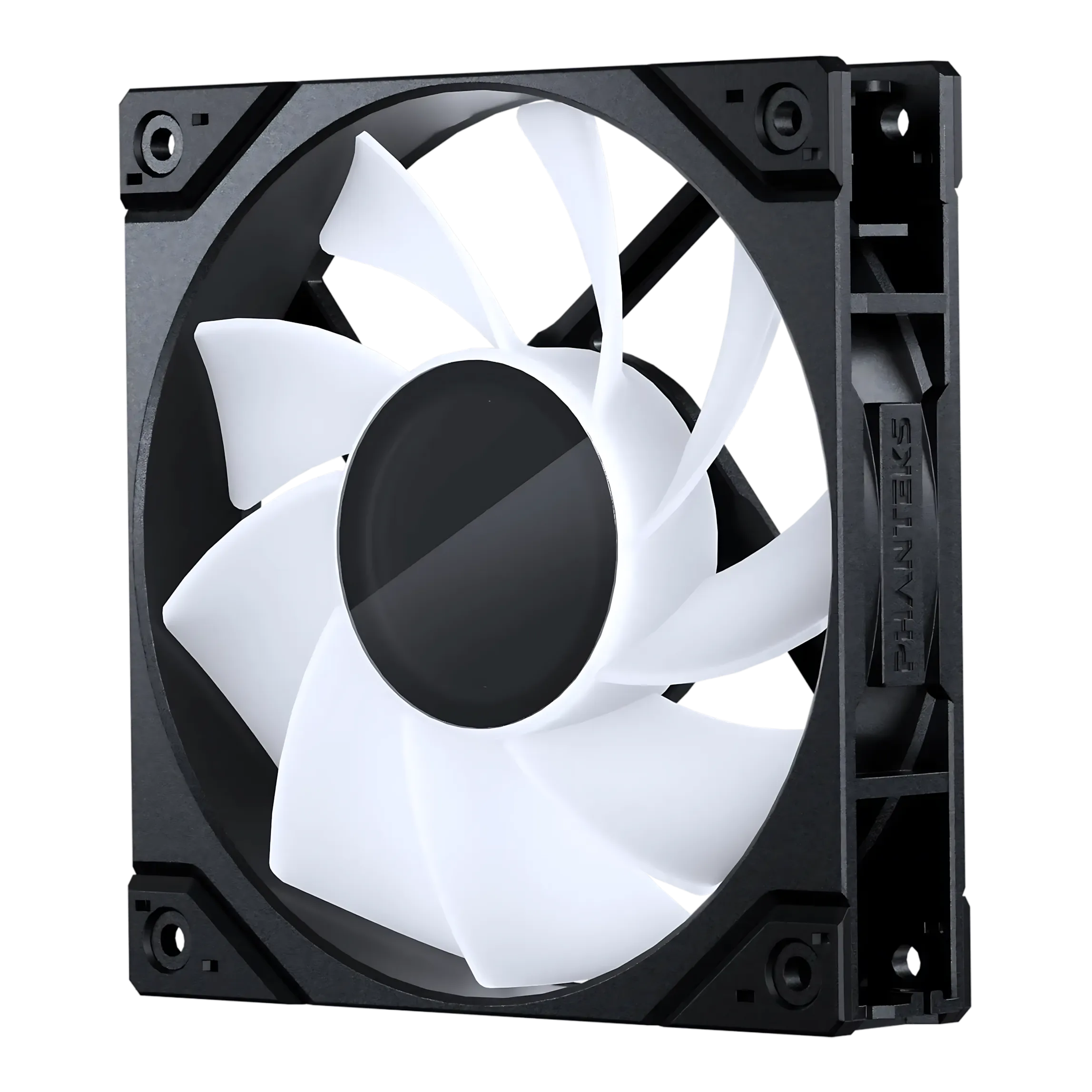

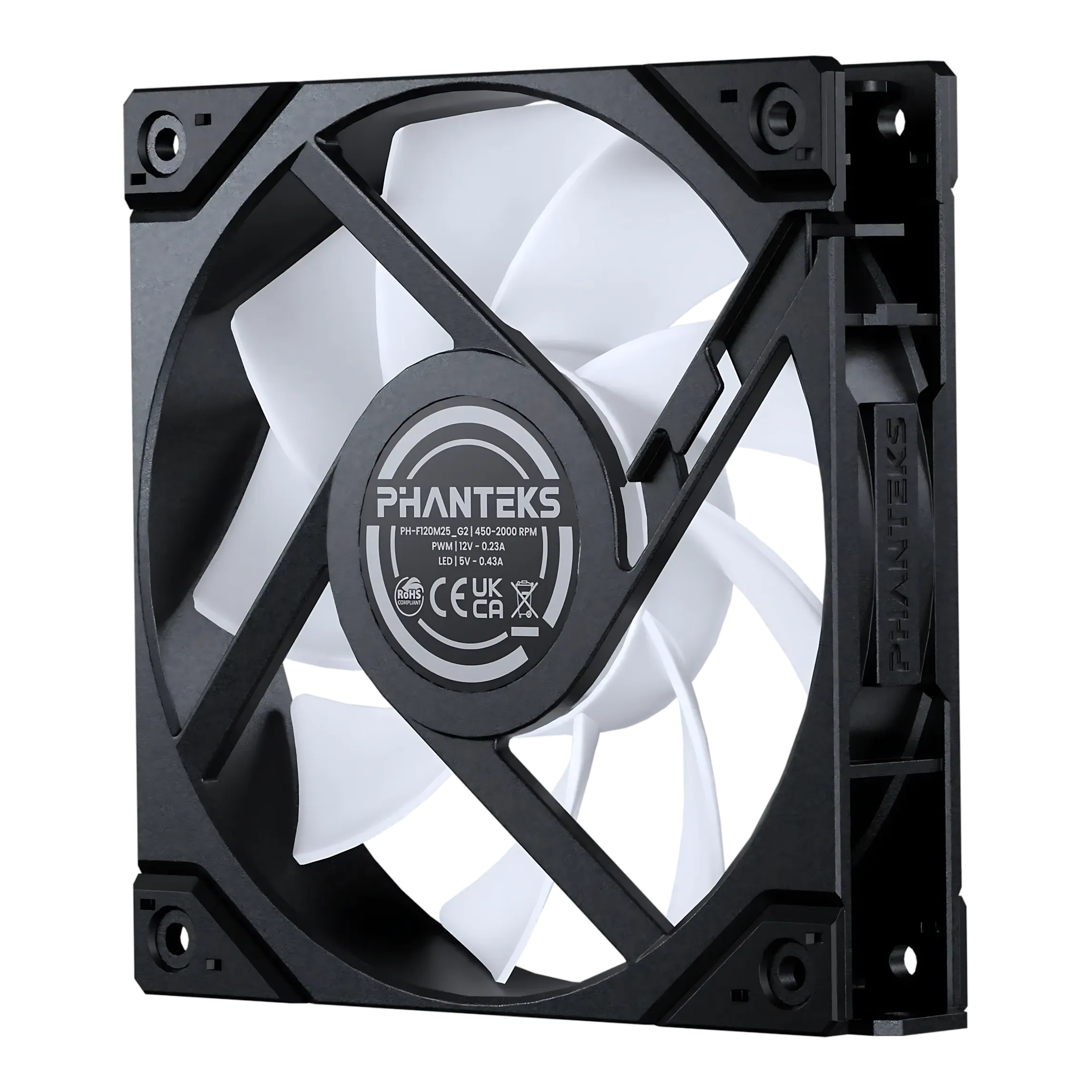

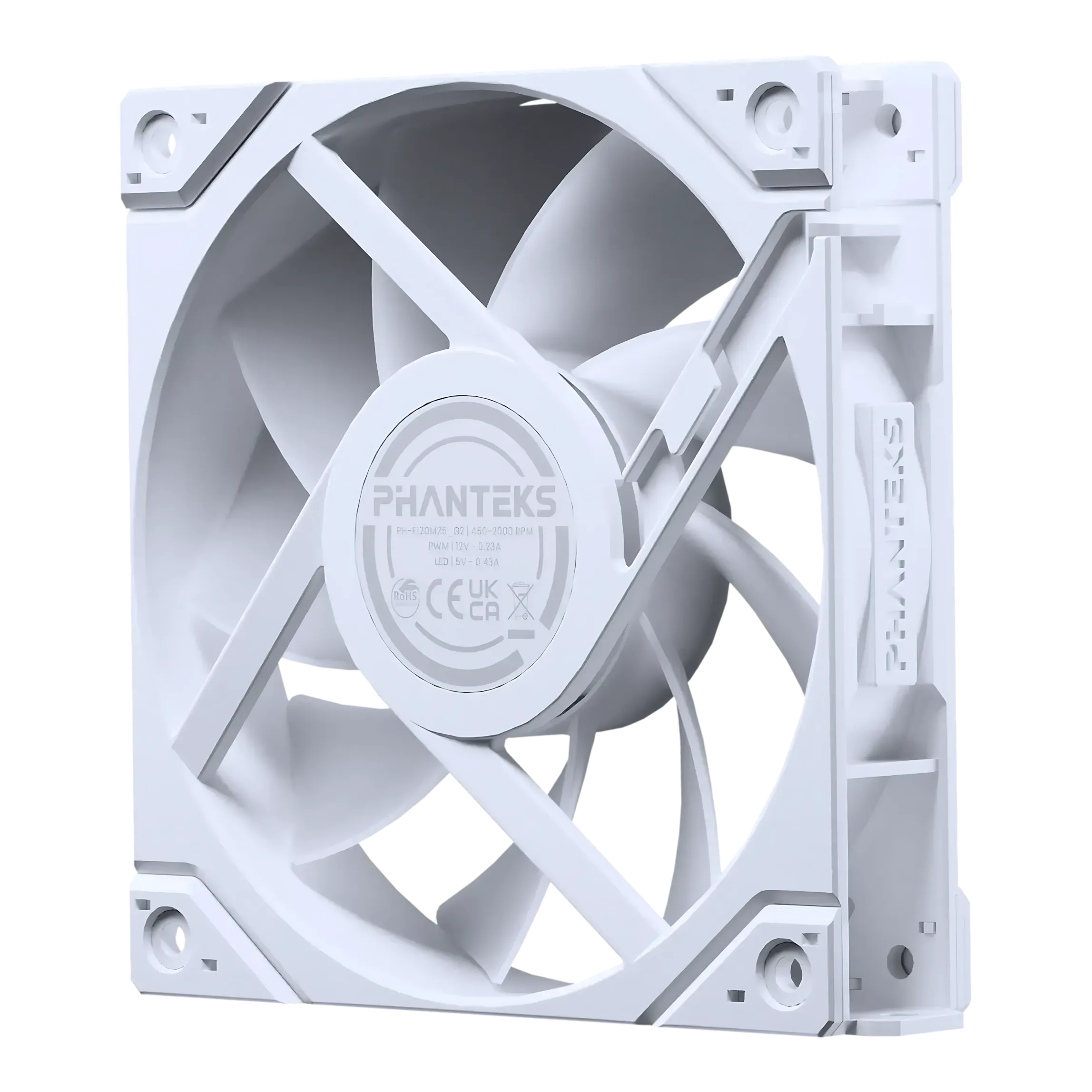

Phanteks M25 G2 120mm Pack of 3

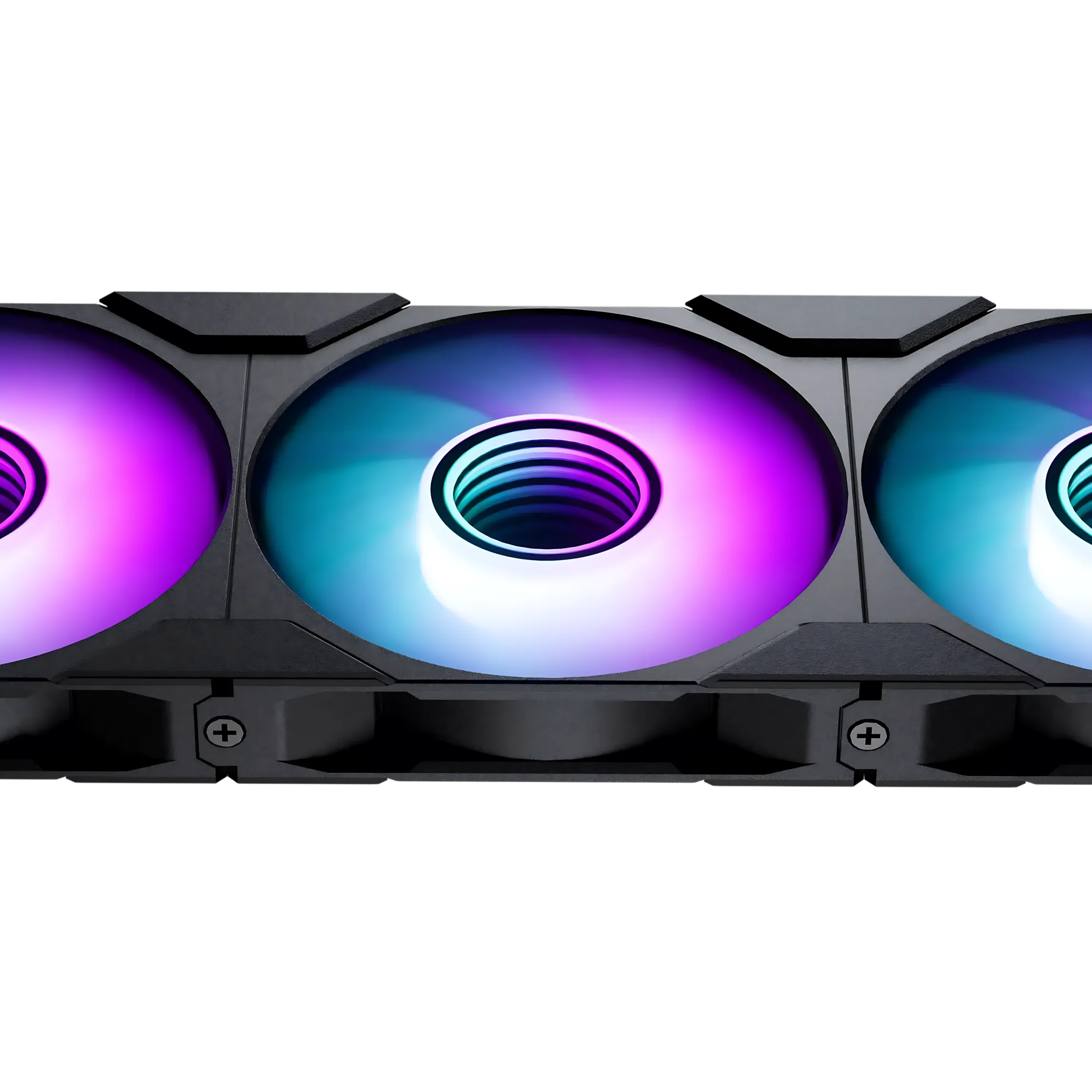

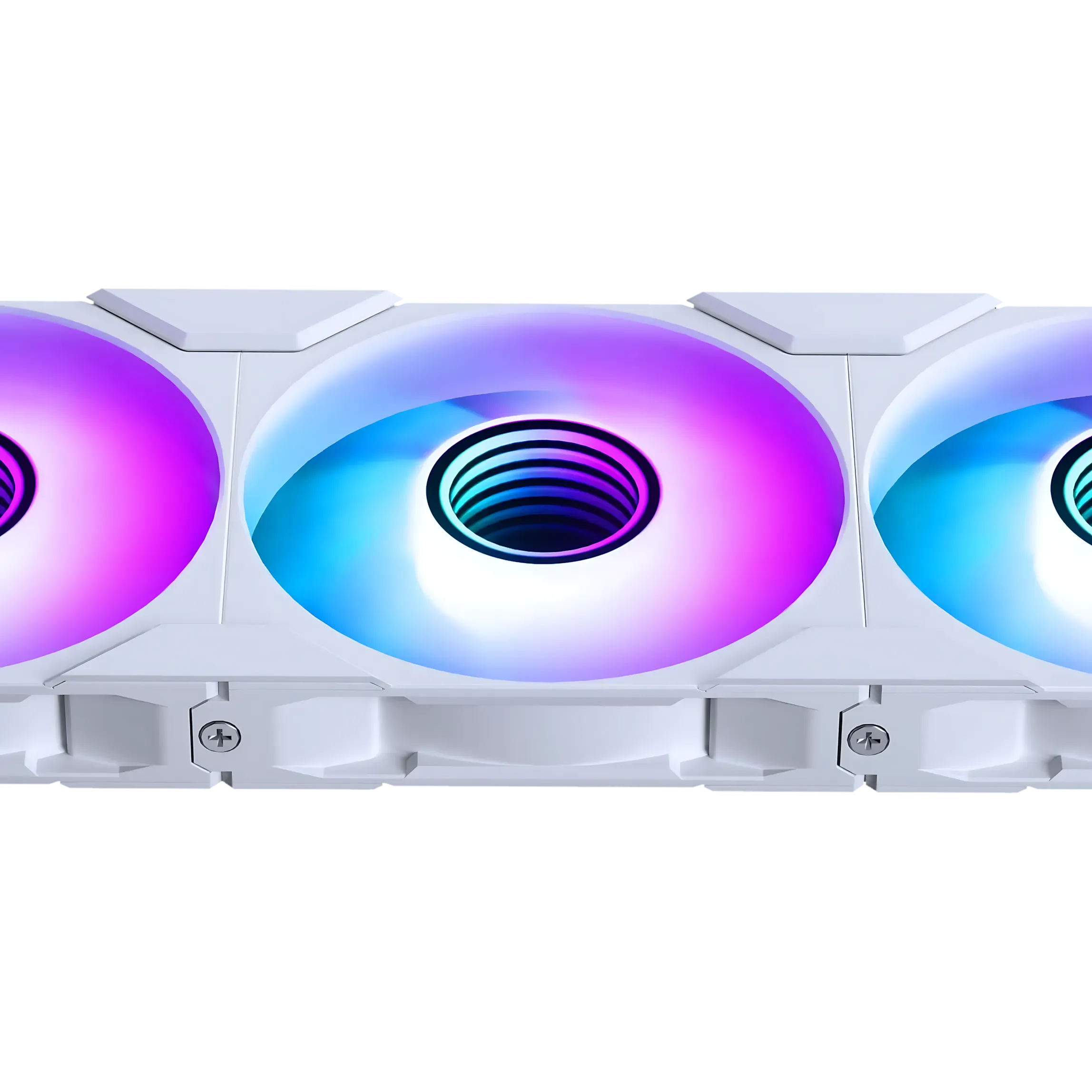

The Phanteks M25 Gen2 comes packed with features previously only seen in the highest-end fans. Its daisy-chain unified fan frame easily interlocks with the next fan to link multiple fans together into one.
With its blades designed specifically for high airflow performance on radiators and heat sinks, the M25 Gen2 excels where it matters. Delivering low temperatures with a clean look to elevate your system.
Couldn't load pickup availability
Pickup currently unavailable at 12 Residence Warehouse
Pairs well with
Phanteks M25 G2 120mm Pack of 3
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Technical Specifications
General
- Model No.
- Regular: PH-F120M25_G2_DWT01 | PH-F120M25_G2_DWT01 _3P

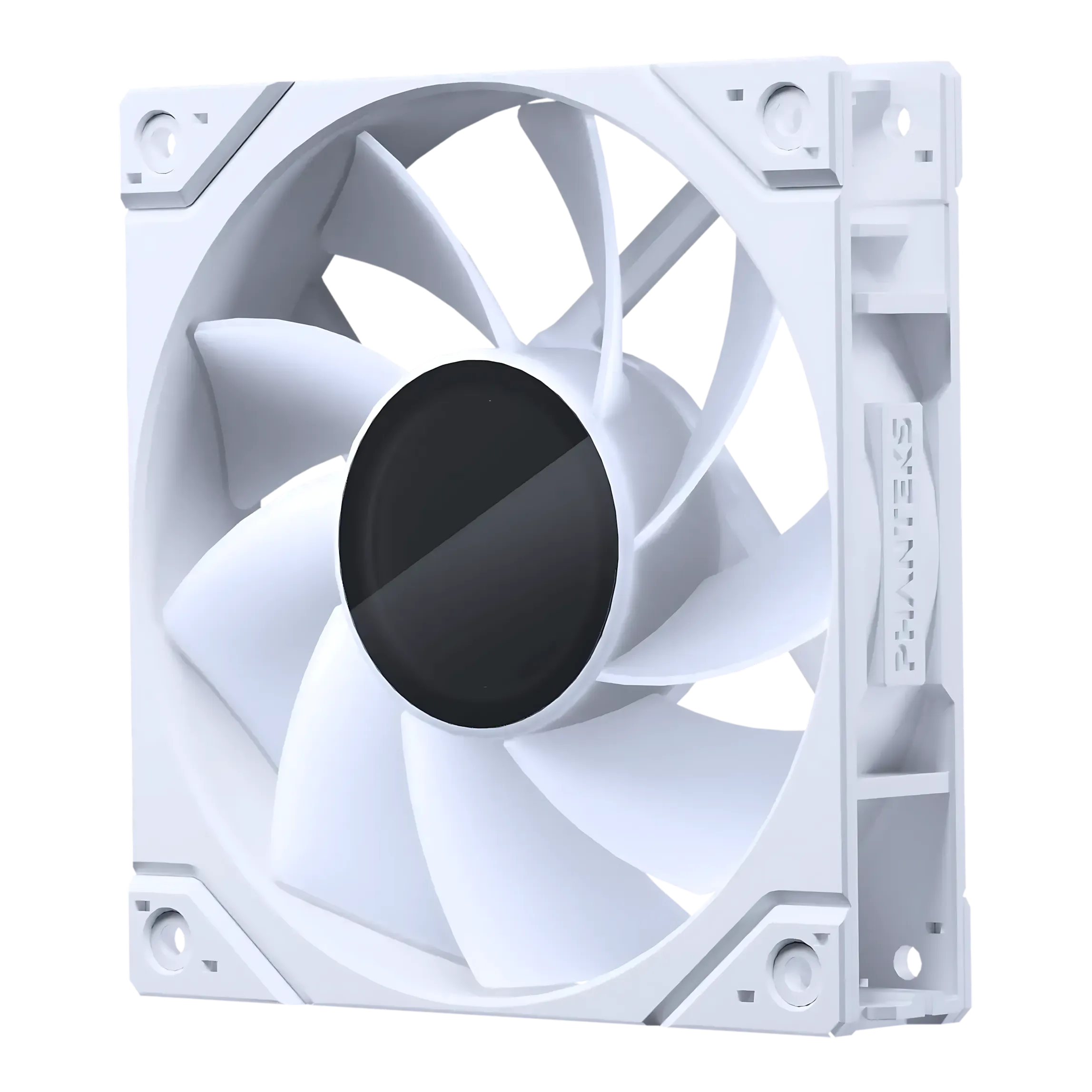

- Reverse:
PH-F120M25R_G2_DWT01 | PH-F120M25R_G2_DWT01 _3P - Frame Size: 120 x 120 x 25 mm | 4.72 x 4.72 x 0.98 in

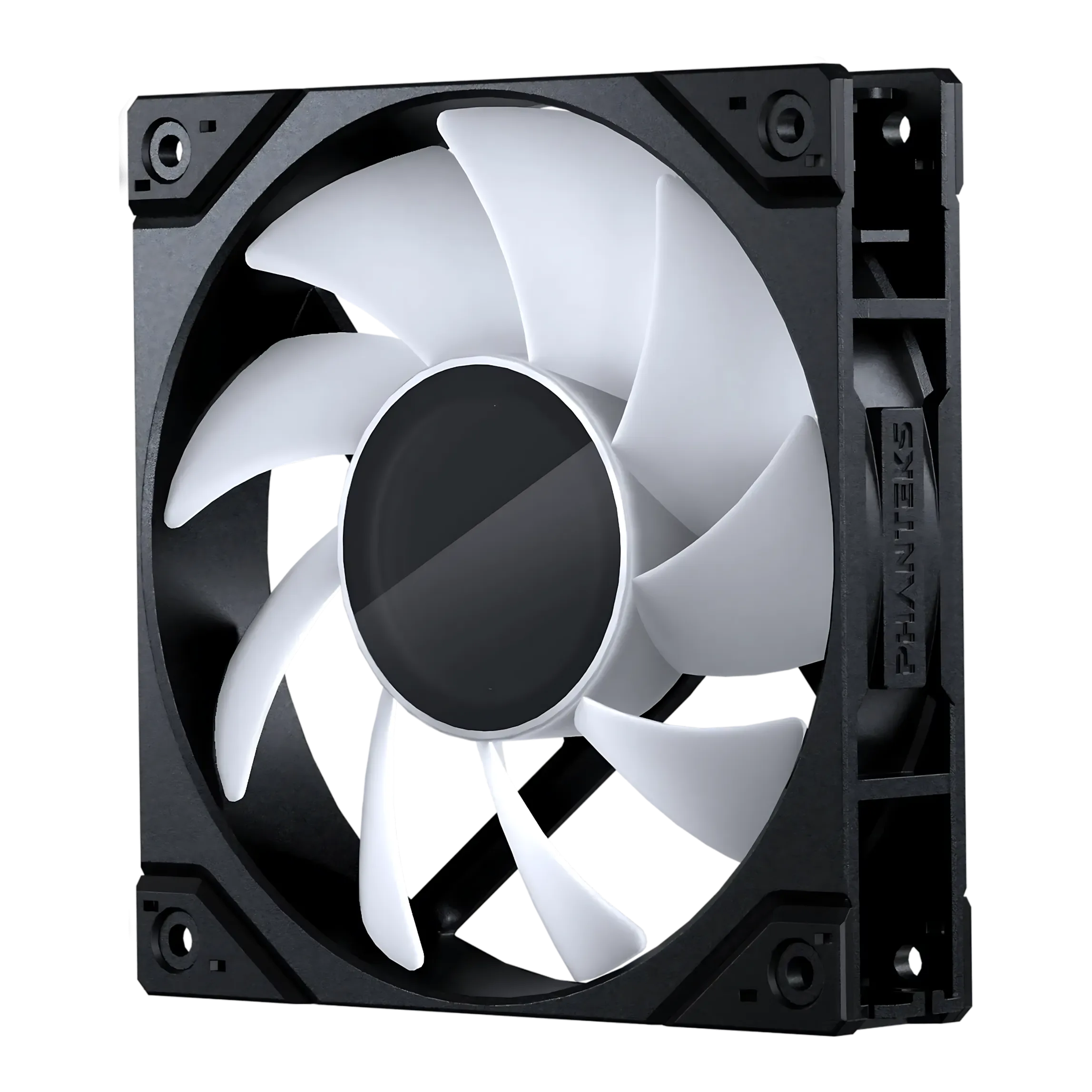

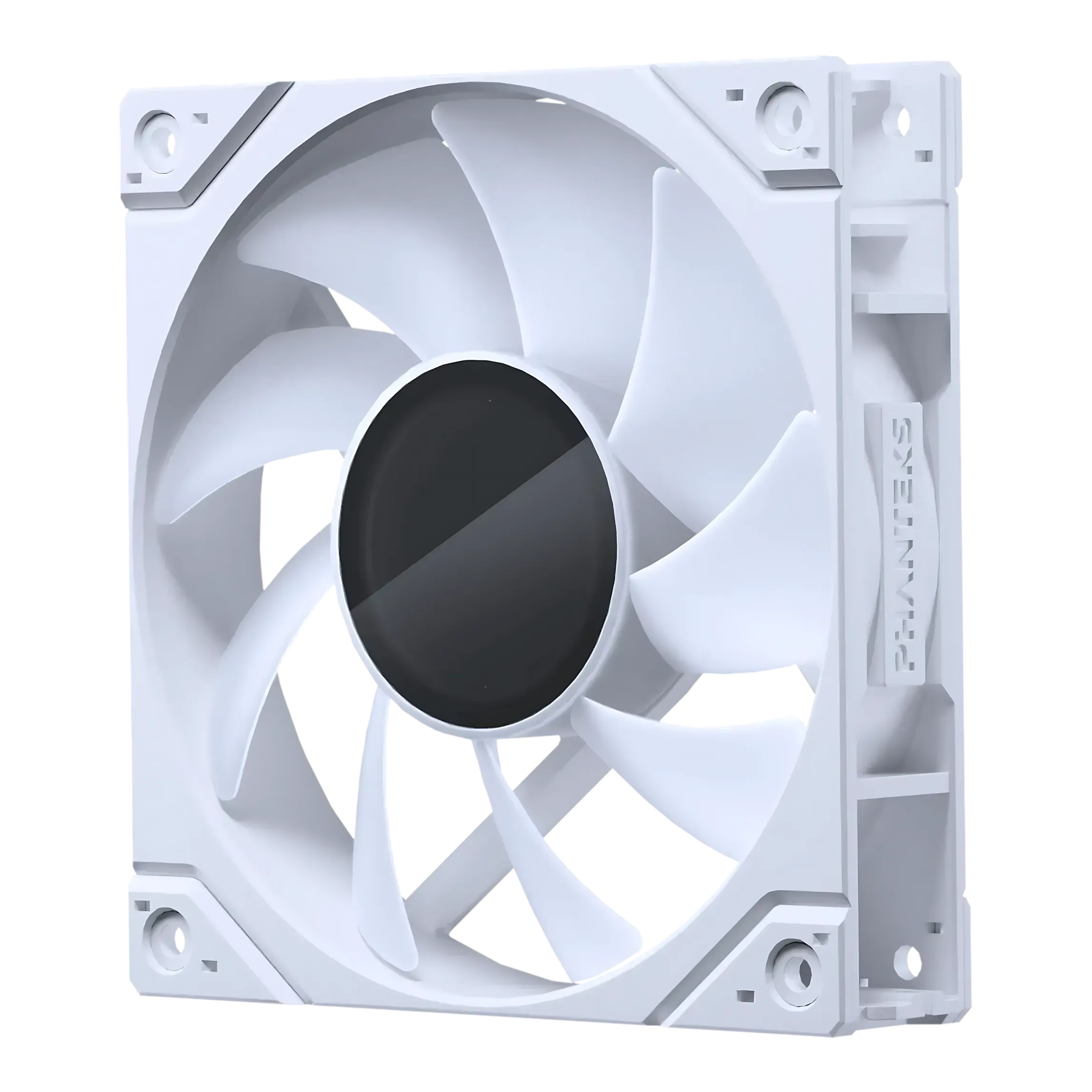

- Blade Geometry: Nine blades design
- Color: White | Black
- Connector: Linq6
- Cable Length: 120 mm | 4.72 in Daisy-chain
Technical Details (Regular):
- Bearing Type: Hydraulic bearing
- Rated Voltage: 12V
- Noise Level: 35.13 dBA
- Max. Airflow: 72.72 CFM
- Max. Air Pressure: 2.51 mm H2O
- Speed: 350~2000 ± 10% RPM
- MTFB: 40.000 hours
- Max Current: 0.30A
- Max Power: 2.76W
- Operating Voltage Range: DC 6 – 13.2V
- LED Number: 12
- LED Rated Current: Max. 0.43A
Technical Details (Reverse):
- Bearing Type: Hydraulic bearing
- Rated Voltage: 12V
- Noise Level: 39.28 dBA
- Max. Airflow: 73.69 CFM
- Max. Air Pressure: 1.99 mm H2O
- Speed: 350~2000 ± 10% RPM
- MTFB: 40.000 hours
- Max Current: 0.30A
- Max Power: 2.76W
- Operating Voltage Range: DC 6 – 13.2V
- LED Number: 12
- LED Max Rated Current: 0.43A
Single Pack
- Net Weight: 154 ± 5 g | 5.43 ± 0.17 oz
- Gross Weight: 224 ± 5 g | 7.90 ± 0.17 oz
- Warranty: 3 Years
- Scope of Delivery: 1x M25G2-120 fan
- Accessories:
- 1x Linq6 extension cable 500 mm
- 4x Screw cover corner
- 2x Screw cover bridge - Screws: 5x Fan screw
Triple Pack
- Net Weight: 464 ± 5 g | 16.63 ± 0.17 oz
- Gross Weight: 623 ± 5 g | 16.63 ± 0.17 oz
- Warranty: 3 Years
- Scope of Delivery: 3x M25G2-120 fans
- Accessories:
- 2x Linq6 extension cable 500 mm
- 1x Linq6 adapter cable 500 mm
- 8x Screw cover corner
- 4x Screw cover bridge - Screws: 14x Fan Screw
